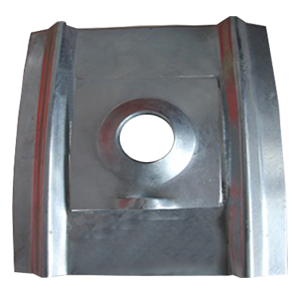

Split Set Combi Plate

The double layer plate is composed of a piece of 300mm x 280mm x 2mm and a piece of 150mm x 150mm x 4mm. This combi plate is more uniform in force. We can also customize production according to your requirements.The square plate of the first layer can be changed in size, thickness and shape

Contact Now E-Mail Telephone WhatsApp

Product Details

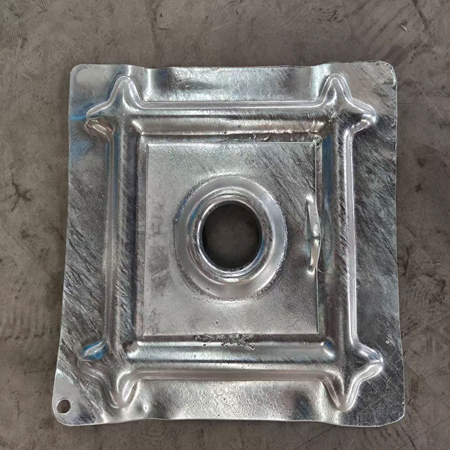

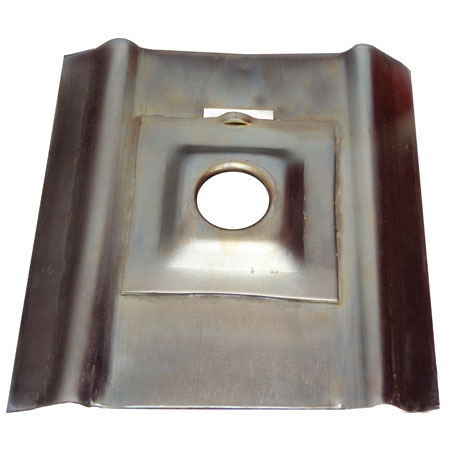

Split Set Combi plate

Split Set Combi plate is a kind of combination updating plate using together with Split set bolt to make a better performace in ground support application,which is widlely used in mining ,tunnel and slope projects etc.It is made by two parts,one dome plate attached on a strata plate,pressing or welding together.

combi plate

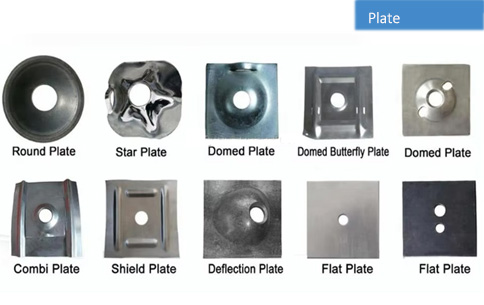

Plate is a product used to support anchor bolt.Its function is t provide support and distribute the load between the anchor bolt and the coal mine or rock body prevent the anchor bolt from failing due to excessive load. The design of plate is usually round or square and plates of different sizes are selected based on the diameter and length of the anchor bolts.

Split Set Combi Plate Specification

Plate Type	Combi Type	Length (mm)	Width (mm)	Thickness (mm)	Unit Weight (kg)	Dog ear
TRCP	Top Plate	150	150	4	2.17	Y
TRCP	Bottom Plate	300	280	2	2.17	N
TRCP	Top Plate	150	150	5	2.34	Y
TRCP	Bottom Plate	300	280	2	2.34	N
TRCP	Top Plate	150	150	6	2.51	Y
TRCP	Bottom Plate	300	280	2	2.51	N

Split Set Combi Plate Package

Split set combi plates are packed withplywood box,steel pallets and wrapping films.

combi plate

Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
