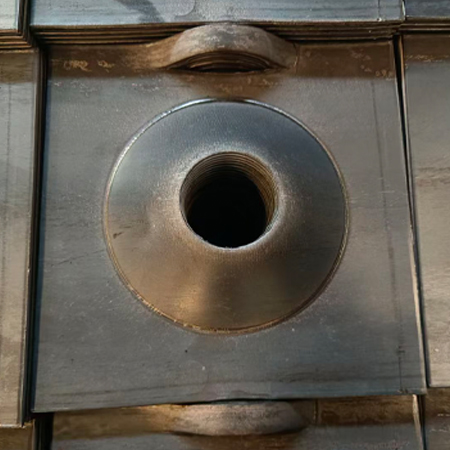

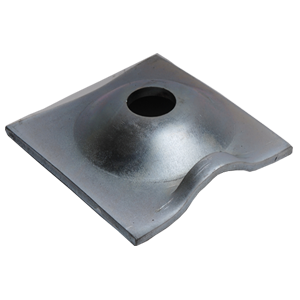

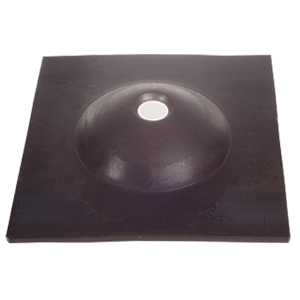

Domed plate
- -The TONRY Domed plate helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -The domed plate is made from 120-200 millimeters wide, hot-rolled steel.
- -Domed plate reference to the AS/NZS 1594:2002 standard.
- -Provide stable support for the bolt even in the rough rock layers.
- -The galvanized coating is available to protect the plates from corrosion.
Domed plate
When choosing a domed plate, firstly, it is necessary to meet the strength matching between the domed plate and the anchor bolt body, so as to avoid the phenomenon of anchor bolt perforation caused by insufficient strength of the domed plate. The second is to meet the matching of the anchor bolt and the anchor bolt body on the supporting structure, so as to avoid uneven force on the anchor bolt body and nut due to the mismatch between the anchor bolt body and the domed plate on the supporting structure, which will affect the support of the roadway protection effect.
Domed plate Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRDP | 120 | 120 | 4 | 0.45 | Y |
| TRDP | 125 | 125 | 4 | 0.49 | Y |
| TRDP | 150 | 150 | 4 | 0.71 | Y |
| TRDP | 150 | 150 | 5 | 0.88 | Y |
| TRDP | 150 | 150 | 6 | 1.06 | Y |
| TRDP | 150 | 150 | 8 | 1.41 | Y |
| TRDP | 150 | 150 | 12 | 2.12 | N |
| TRDP | 200 | 200 | 4 | 1.26 | Y |
| TRDP | 200 | 200 | 5 | 1.57 | Y |
| TRDP | 200 | 200 | 8 | 2.51 | N |
| TRDP | 200 | 200 | 10 | 3.14 | N |
| TRDP | 200 | 200 | 12 | 3.77 | N |
| TRDP | 200 | 200 | 14 | 4.40 | N |
| TRDP | 200 | 200 | 16 | 5.02 | N |
Domed plate Features & Advantages
Custom sizes can be provided to meet specific customer requirements.

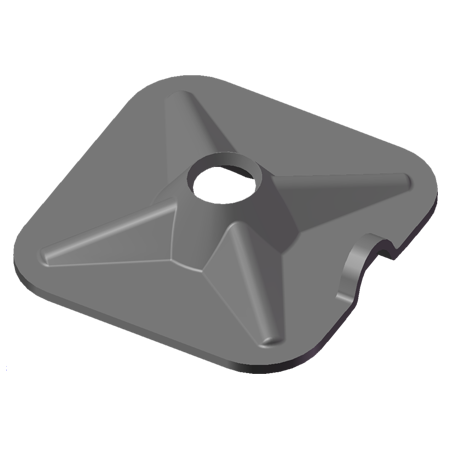

The dome-shaped design significantly enhances the bearing capacity.

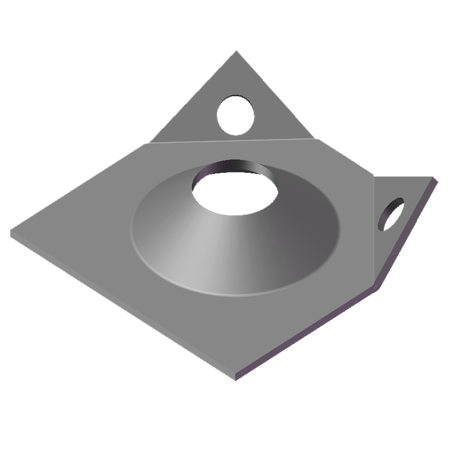

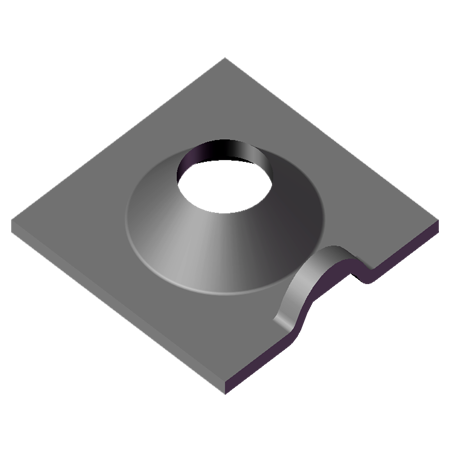

Features a dog ear option for convenient hanging of service lines.
Friction bolt plates have a hole diameter 2mm larger than the bolt.
Thread bolt plates feature a hole diameter 4-5mm larger than the bolt unless used with a dome ball.
Offered in either black or as a hot-dip galvanized finish.
Domed Plate Package
Domed plates are packed with wire slips, plywood boxes, steel pallets & wrapping films.
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
