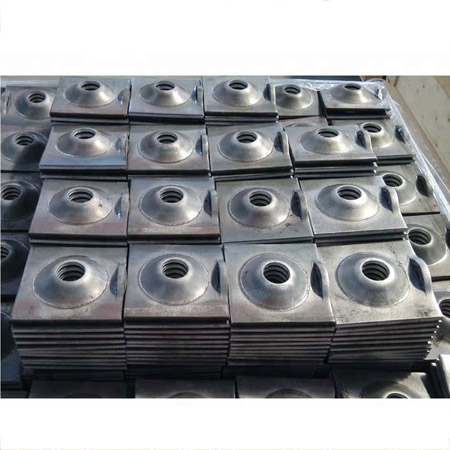

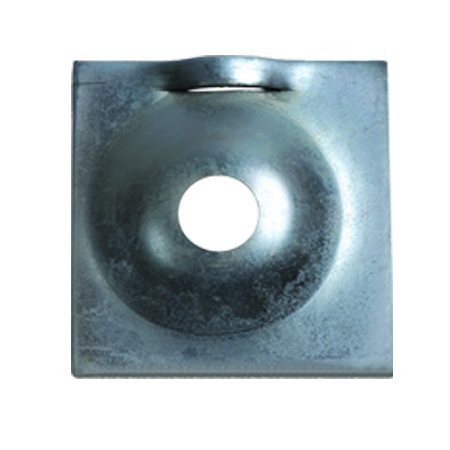

Domed plate 150X150X12
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -The Domed plate 150X150X12 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -The Domed plate 150X150X12 is made from 120-200 millimeters wide hot rolled steel.
- -Domed plate 150X150X12 reference to the AS/NZS 1594:2002 standard.
- -Provide stable support for the bolt even in the rough rock layers.
- -The galvanized coating is available to protect the plates from corrosion.
Domed plate has a stable structure, is easy to install, has a unique design, excellent force-bearing effect and is easy to install.It is widely applied in mine roof support, various tunnel support, coal mine, metal mine and highway slope support, etc., and the support effect is very good.
Domed plate 150X150X12 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRDP | 120 | 120 | 4 | 0.45 | Y |
| TRDP | 125 | 125 | 4 | 0.49 | Y |
| TRDP | 150 | 150 | 4 | 0.71 | Y |
| TRDP | 150 | 150 | 5 | 0.88 | Y |
| TRDP | 150 | 150 | 6 | 1.06 | Y |
| TRDP | 150 | 150 | 8 | 1.42 | Y |
| TRDP | 150 | 150 | 12 | 2.12 | N |
| TRDP | 200 | 200 | 4 | 1.26 | Y |
| TRDP | 200 | 200 | 5 | 1.57 | Y |
| TRDP | 200 | 200 | 8 | 2.51 | N |
| TRDP | 200 | 200 | 10 | 3.14 | N |
| TRDP | 200 | 200 | 12 | 3.77 | N |
| TRDP | 200 | 200 | 14 | 4.40 | N |
| TRDP | 200 | 200 | 16 | 5.02 | N |
Domed plate 150X150X12 Features & Advantages
Custom sizes can be provided to meet specific customer needs.
The dome design significantly increases the bearing capacity.
Features a dog ear design for easy suspension of service lines.
Friction bolt plates have a hole diameter 2mm larger than the bolt.
Thread bolt plates feature a hole diameter 4-5mm larger than the bolt, unless used with a dome ball.
Offered in either a black finish or hot-dip galvanized.
Domed plate 150X150X12 Package
Domed plates are packed with wire slips, plywood box, steel pallets & wrapping films.
