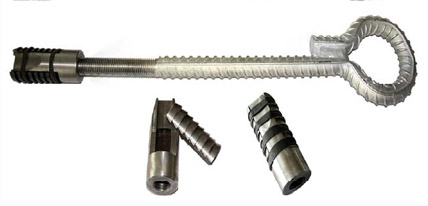

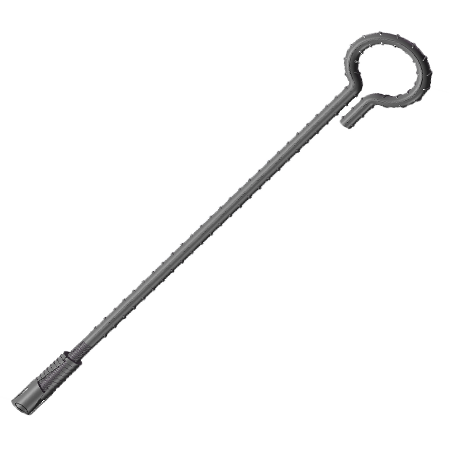

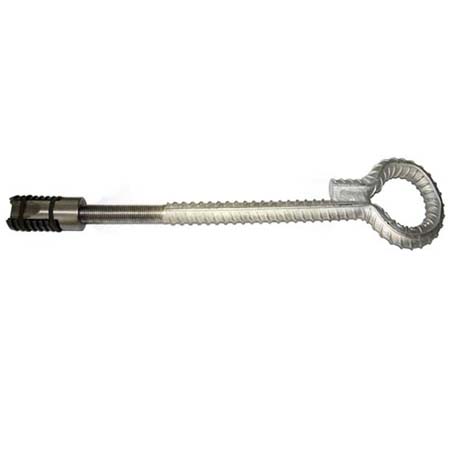

Eye Bolt
- -quick installation
- -Ability to suspend heavy equipment quickly
- -The suspension function allows for the direct suspension of items or tensioning equipment
Eye Bolts are threaded at one end for theattachment of an expansion unit.The other end is hot worked to form a eye bolt for suspension of air, water,refrigeration and ventilation columns as well asfor electrical cable and chain support.
How to work
Before commencing with any work, examine the place where the bolts are to be installed and make safe. Bar down where necessary and install temporary support in accordance with the relevant mine standard procedures.
Drill the hole where indicated to the required depth and the correct diameter.
Remove the plastic sleeve from the expansion unit and discarded.
The rotate the expansion unit for a few turns to make sure that it moves freely along the thread.
Insert the eyebolt into the hole expansion unit first, to the required depth.
The eyebolt is then twisted to expand the expansion unit and secure the eyebolt into place.
