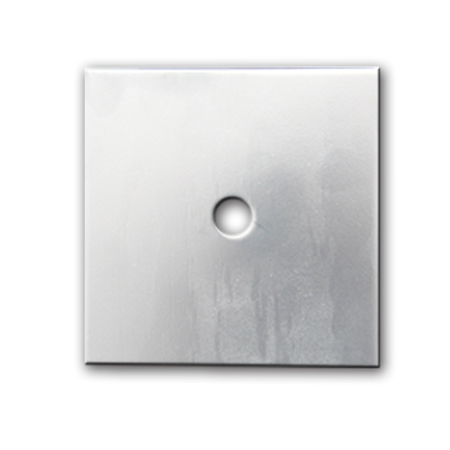

Flat Plate Galvanized

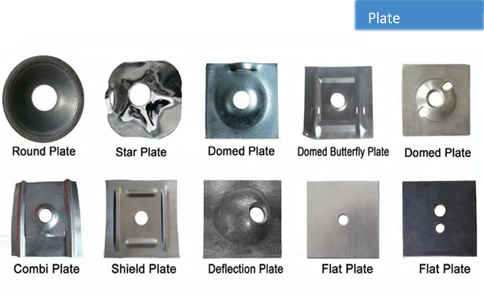

- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -The TONRY plate helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat Plate Galvanized can be combined with cable bolts to provide support.
- -Flat Plate Galvanized are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Flat Plate Galvanized Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Flat Plate Galvanized Features & Advantages
Custom sizes can be provided according to the specific needs of customers.
Suitable for mines with limited overhead space.
Appropriate for use on mostly flat rock surfaces.
Ideal for areas requiring minimal to no angular adjustment.
Multi-hole plates are offered to secure both breather tubes and grout tubes when used with cable bolts.
Offered with a choice of black or hot-dip galvanized finish.
Flat Plate Galvanized Package

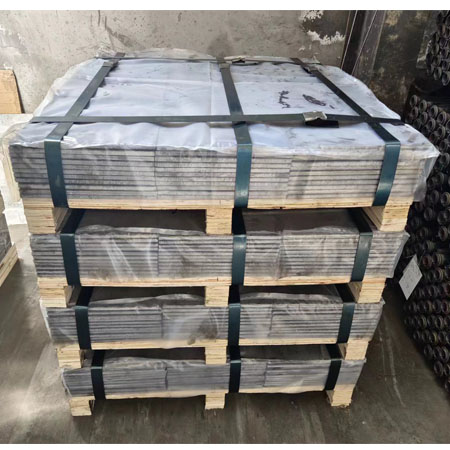

Flat Plate Galvanized are packed with plywood box, steel pallets and wrapping films.
As an important part of the anchor bolt support system,the performance of the plate directly affects the support effect of the anchor bolt.Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
.
