Mining Anchor Net
- -Made of high-strength steel wire.
- -Accommodates all bolt spacing patterns.
- -Large support areas can be created by overlapping sheet edges.
- -Can improve load distribution between roof bolts.
- -A variety of lengths and widths are available and can be customized according to your requirements.

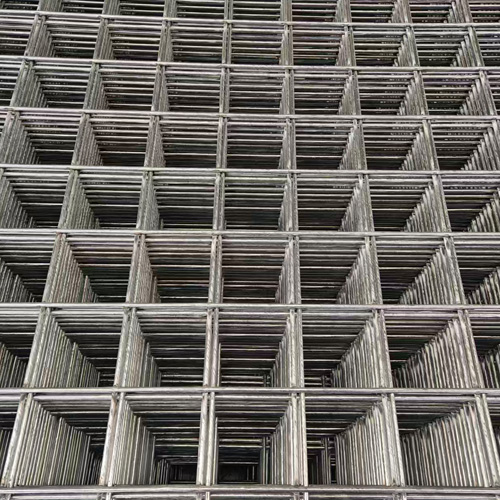

Mining Anchor Net
Mining Anchor Net is an important material for the support of coal mine roadways. After installation, it closely adheres to the rock wall of the roadway, disperses pressure, prevents the falling of crushed stones, enhances the stability of the enclosure, and ensures the safety of operations. It features high strength, good toughness, and easy installation, and can meet the support requirements of coal mine roadways under different geological conditions. In coal mining, Mining Anchor Net plays a crucial role in preventing roof accidents and enhancing the mining rate
Mining Anchor Net Key Features
1. Wire diameters, spacing, and dimensions can be customized to suit particular applications.
2. Customised sheets available with double or additional wires if requested.
3. Suitable for shotcrete applications.
4. Customised paint lines along the modules to suit roof bolt patterns.
5. Trimmed edges to ensure there is limited overhang of wire to cause injury when handling.
Mesh Sheet Length (mm) | Mesh Sheet Width (mm) | Cross Wire Diameter (mm) | Longitudinal Wire Diameter (mm) | Wire Aperture (mm) |
| 1500 | 1200 | 3.15 | 3.15 | 50X50 |
| 2000 | 1300 | 4 | 4 | 50X75 |
| 3100 | 1500 | 4.15 | 4.15 | 75X75 |
| 3300 | 1700 | 4.9 | 4.9 | 100X100 |
| 4000 | 2400 | 5.6 | 5.6 | 100X150 |
| 5000 | 2500 | 6.0 | 6.0 | 150X150 |
| ... | 8.0 | 8.0 | 200X200 |
Mining Anchor Net Mechanical Properties
| Component | Strength | Standard |
| Wire | Tensile 500-750MPa | AS/NZS4671:2001 |
| Weld Shear Strength | ISO 15630-2 | |
| Galvanizing | AS/NZS534-2006 |

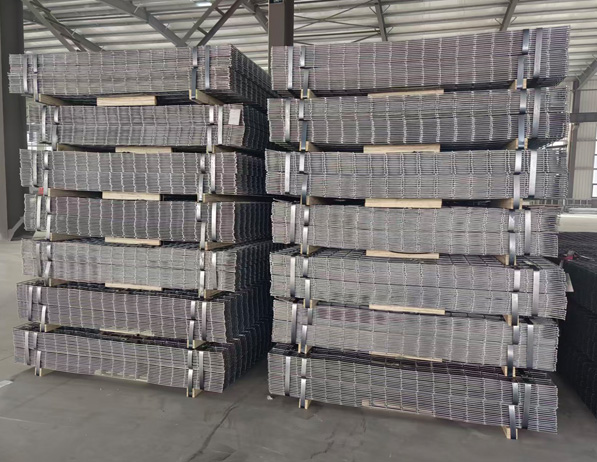

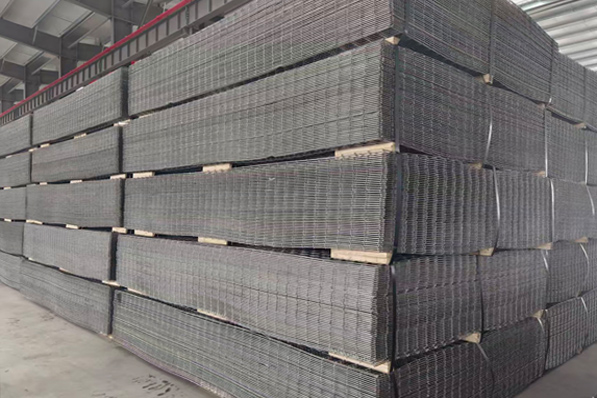

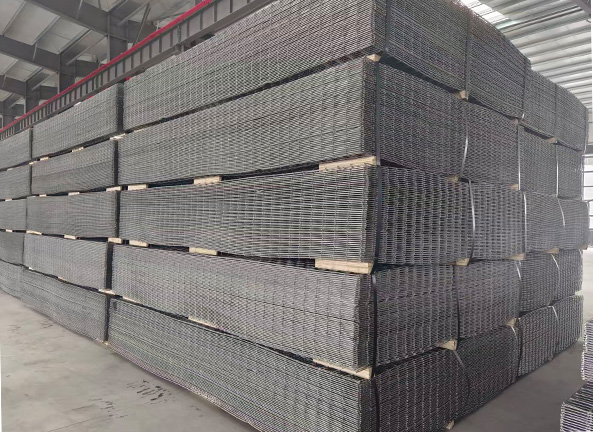

Mining Anchor Net Package:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 50pcs.
