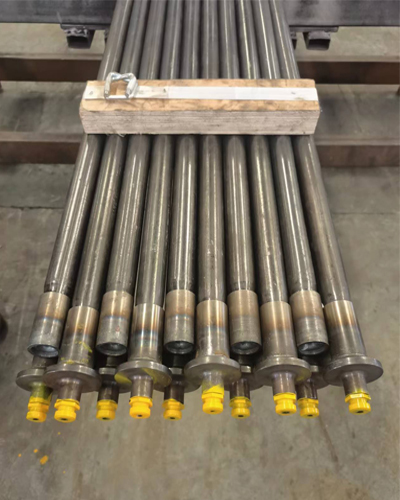

Omega Bolt Ground Control

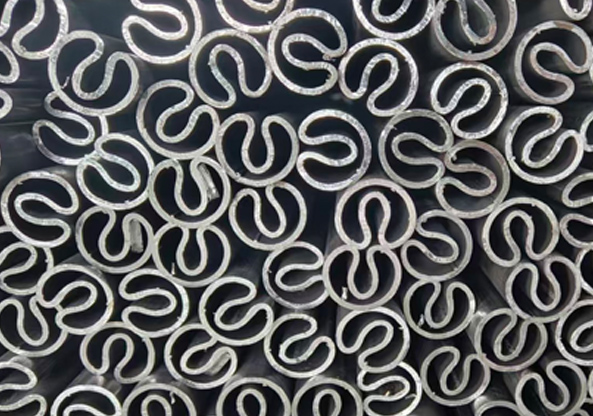

- -The Omega Bolt Ground Control is a friction bolt made from pressed steel tubing.
- -Omega Bolt Ground Control expands and unfolds in the rock hole through the pressure of water.
- -The installation is convenient and fast and can provide uniform support for the rock strata.
- -It is suitable for rock strata under various conditions.
Omega Bolt Ground
The Omega Bolt is an expandable rock bolt with elongation properties designed to accommodate ground movement. Put the steel pipe into the anchor hole and use high-pressure water to expand it. During the expansion process, the Omega Bolt undergoes permanent deformation. The wall of the anchor pipe completely fits the irregular wall of the anchor hole. The entire length of the anchor creates friction and self-locking forces, thereby strengthening the rock mass.
Omega Bolt Ground Control Key Features
Installation is rapid and effortless
No resin or grout is necessary
Remains stable despite blasting vibrations and varying rock strengths
Boasts an extensive expansion range, ensuring even load distribution along the hole
Delivers immediate structural support
Two designs of Omega Bolt Ground Control
> New improved Bolt with non-return valve which limits "spring-back" giving increased pull-out resistance and keeps high strength expansion.
| Item Description | Tube Thickness(mm) | Inflated Bolt Dia (mm) | Drill Hole Dia (mm) | Minimum UTS (mm) | Elongation% | Mass/Meter |
| 27mm | 2 | 41 | 35-38 | 120 | 10 | 2kg/m |
| 27mm | 2 | 54 | 45-51 | 160 | 10 | 2.8kg/m |
| 37mm | 3 | 54 | 45-51 | 240 | 10 | 3.75kg/m |
Omega Bolt Ground Control Accessories
Omega Bolt Ground Control Length
Length: 0.9m to 3.0m or as requested.
Surface: Black / Plastic coated / Thermal Diffused or as requested.
