Swellex PM12

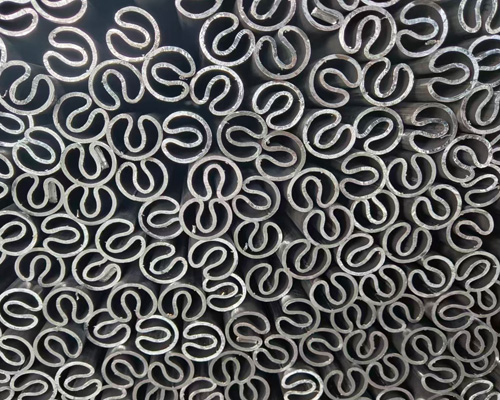

- -Swellex PM12 is a friction bolt made from pressed steel tubing.
- -Swellex PM12 expands and unfolds in the rock hole through the pressure of water.
- -The installation is convenient and fast and can provide uniform support for the rock strata.
- -It is suitable for rock strata under various conditions.
Swellex PM12 Key Features
Installation is rapid and effortless
No resin or grout is necessary
Remains stable despite blasting vibrations and varying rock strengths
Boasts an extensive expansion range, ensuring even load distribution along the hole
Delivers immediate structural support
Two designs of Swellex PM12

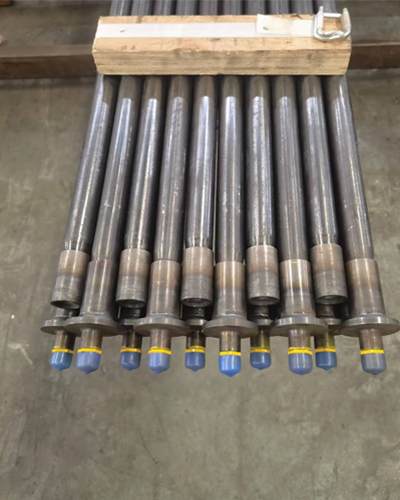

> Swellex PM12
> New improved Bolt with non-return valve which limits "spring-back" giving increased pull-out resistance and keeps high strength expansion.
| Item Description | Tube Thickness(mm) | Inflated Bolt Dia (mm) | Drill Hole Dia (mm) | Minimum UTS (mm) | Elongation% | Mass/Meter |
| 27mm | 2 | 41 | 35-38 | 120 | 10 | 2kg/m |
| 27mm | 2 | 54 | 45-51 | 160 | 10 | 2.8kg/m |
| 37mm | 3 | 54 | 45-51 | 240 | 10 | 3.75kg/m |
>Swellex PM12 Accessories
> Swellex PM12 Length
Length: 0.9m to 3.0m or as requested.
> Surface: Black / Plastic coated / Thermal Diffused or as requested.
