Galvanized Steel Wire Mesh
- -Wire diameters, spacing, and dimensions can be customized to suit particular applications.

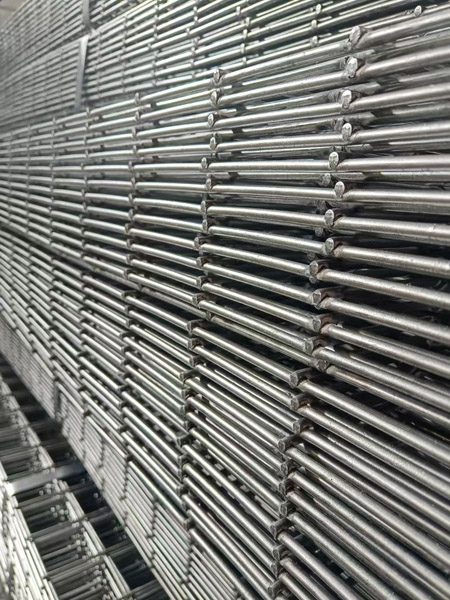

- -Trimmed edges to ensure there is limited overhang of wire to cause injury when handling.
- -Suitable for shotcrete applications.
- -Customised sheets available with double or additional wires if requested.

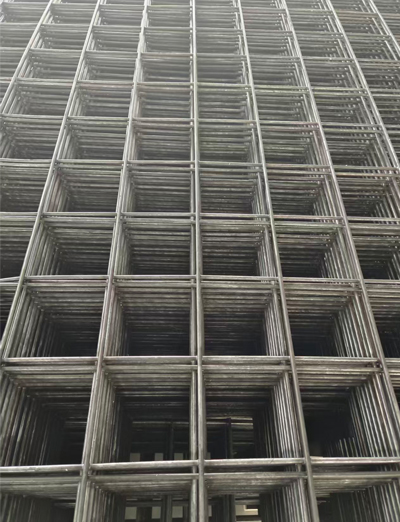

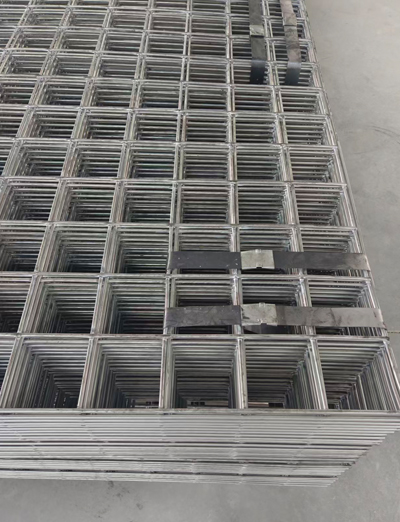

Galvanized Steel Wire Mesh
Galvanized Steel Wire Mesh is welded with high-quality low-carbon steel wire and stainless steel wire.
Among them, low carbon steel wire is a kind of metal wire made of iron. The composition of iron wire varies according to its use. It contains: iron, cobalt, nickel, copper, carbon, zinc, and other elements. Galvanized Steel Wire Mesh also feature corrosion resistance, wear resistance and easy maintenance, which can significantly reduce the maintenance costs of mining enterprises.
Characteristic: Strong welding, uniform mesh, smooth surface, corrosion resistance, strong strength, strong protection.
Mesh Sheet Length (mm) | Mesh Sheet Width (mm) | Cross Wire Diameter (mm) | Longitudinal Wire Diameter (mm) | Wire Aperture (mm) |
| 1500 | 1200 | 3.15 | 3.15 | 50X50 |
| 2000 | 1300 | 4 | 4 | 50X75 |
| 3100 | 1500 | 4.15 | 4.15 | 75X75 |
| 3300 | 1700 | 4.9 | 4.9 | 100X100 |
| 4000 | 2400 | 5.6 | 5.6 | 100X150 |
| 4500 | 2400 | 6.0 | 6.0 | 150X150 |
| ... | 8.0 | 8.0 | 200X200 |

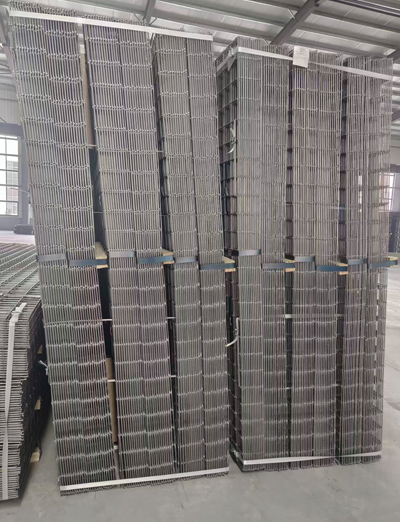

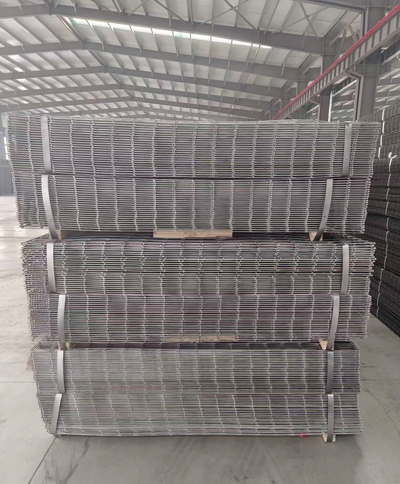

Galvanized Steel Wire Mesh Ground Control Packaging:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 50pcs.
