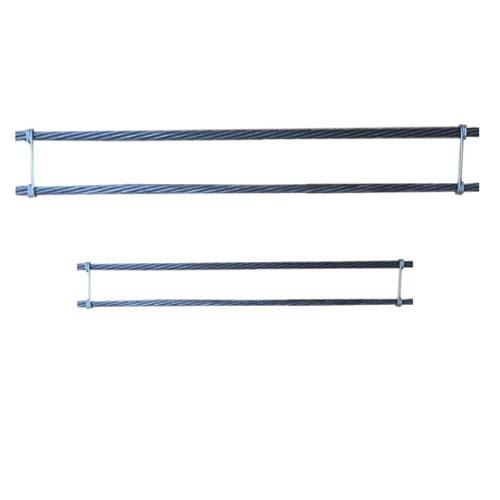

Cable Strap
- -Affordable and supports a high load
- -Dual strands of 15.2mm cable reinforced with 6.3mm wire
- -Designed for easy installation with a straight forward setup
Product Details
Key Features
Low cost and high capacity support
Twin strand of 15.2mm cable secured by 6.3mm wire
Simple design, easy for installation
Lengths are available up to 12m
Available in black or hot dip galvanized
Mechanical Properties
| Properties | 15.2mm | |
| Minimum | Typical | |
| Norminal Strand Diameter | 15.2mm | |
| Strand | 1x7 | |
| Cross-Sectional Steel Area | 143mm2 | |
| Mass Per Meter | 1.13kg | |
| Yield Load at 1% Extension | 234.6kN | 250kN |
| Tensile Strength | 260kN | 265-270kN |
| Elongation on 600mm Gauge Length | 3.5% | 6.5% |
Plate, Barrel & Wedge
Package
Bundle sizes to suit the customer, generally pack of 50pcs
