Combi Plate Galvanized
Combi plate Galvanized

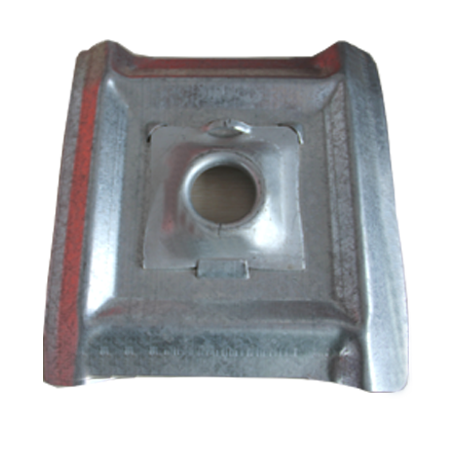

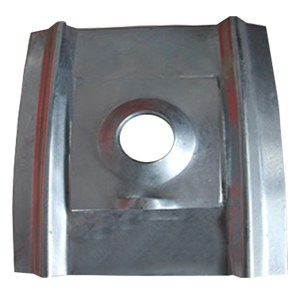

As the most popular combination support plate, combiplate used widely in mining, slope,tunnel applications.Used together with split set bolt, it can offer a stableand safety support to the rock surface and help to fixand hang other things which may be necessary in theground support application.Based on different strata conditions,different type of combi plate can be offered,typically it has a dome plate of 150x150x4mm and a strata plate with 300x280x2mm which pressed of welded togrther.
Combi plate Galvanized Specifications
| Plate Type | Combi Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRCP | Top Plate | 150 | 150 | 4 | 2.17 | Y |
| Bottom Plate | 300 | 280 | 2 | N | ||
| TRCP | Top Plate | 150 | 150 | 5 | 2.34 | Y |
| Bottom Plate | 300 | 280 | 2 | N | ||
| TRCP | Top Plate | 150 | 150 | 6 | 2.51 | Y |
| Bottom Plate | 300 | 280 | 2 | N |
Combi plate Galvanized Features & Advantages
Alternate sizes also available as customer’s requirement.
Used with flat plate or domed plate to increase support capacity.
Two separate plates combine together for one time installation.
Enlarge contact surface area to increase the support effect.
Long hole is used for hanging of service lines.
Available in black or hot dip galvanized.

Combi plate Galvanized Package

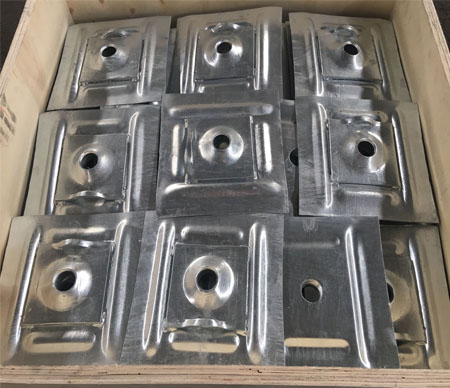

Combi plates Galvanized are packed with plywood box, steel pallets and wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
