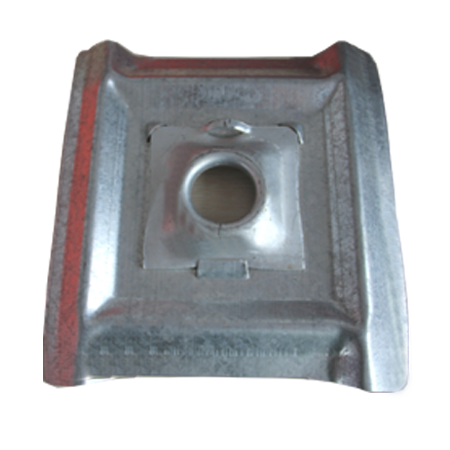

Roof Support Duplex Plate
- -Alternate sizes also available as customer's requirement.
- -Two separate plates combine together for one time installation.
- -Used with flat plate or domed plate to increase support capacity.
- -Enlarge contact surface area to increase the support effect.
- -Available in black or hot dip galvanized.
Roof Support Duplex Plate
Duplex plate is widely used in mining engineering.The appropriate model and thickness should be selected accroding to the engineering requirements.Square plates are more common.The specifications of anchor bolts and the installation of the environment,as well as the load bearing capacity and stability of plates are of vital importance to construciton safety.
As the most popular combinaion support plate,Duplex plate used widely in mining,slope,tunnel applications,used together with split set bolt,it can offer a stable and safety support to the rock surface and help to fix and hang other things which can be necessary in the ground suport application.
Roof Support Duplex Plate Specification
| Plate Type | Combi Type | Length (mm) | width (mm) | Thickness (mm) | Unit Weight (kg) | Dog ear |
| TRCP | Top Plate | 150 | 150 | 4 | 2.17 | Y |
| Bottom Plate | 300 | 280 | 2 | N | ||
| TRCP | Top Plate | 150 | 150 | 5 | 2.34 | Y |
| Bottom Plate | 300 | 280 | 2 | N | ||
| TRCP | Top Plate | 150 | 150 | 6 | 2.51 | Y |
| Bottom Plate | 300 | 280 | 2 | N |
Roof Support Duplex Plate Pacakage

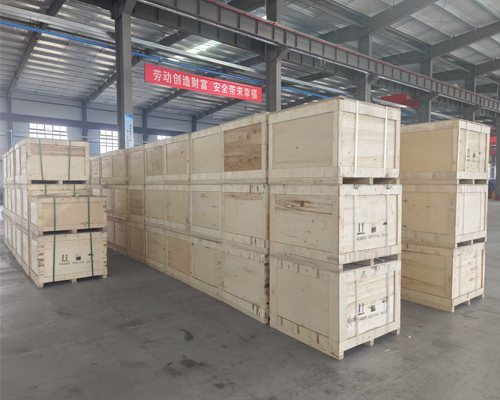

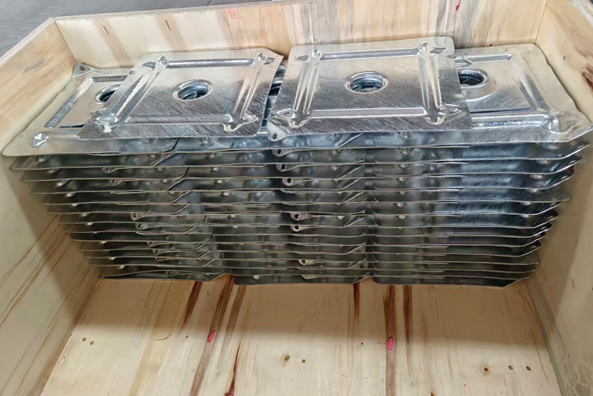

Duplex plates are packed with plywood box,steel pallets and wrapping films.
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
