Butterfly Plate Roof Support
- -Butterfly Plate Roof Support made of high-strength carbon steel plate.
- -It can effectively support and fix anchor bolts, enhancing the stability of the overall structure.
- -Butterfly Plate Roof Support has a stable structure, is easy to install, has a unique design, excellent force-bearing effect and is easy to install.
Butterfly Plate Roof Support

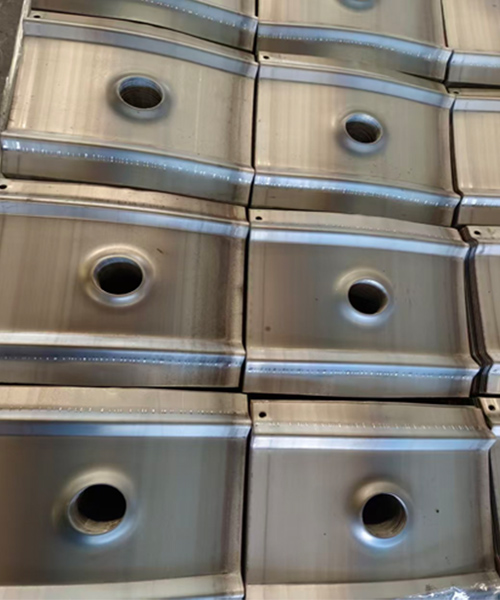

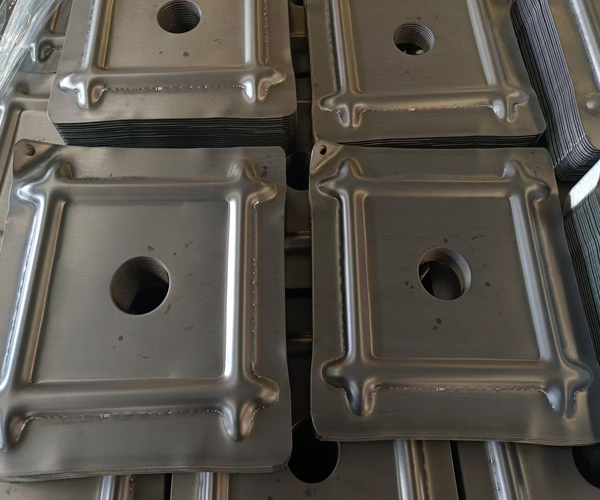

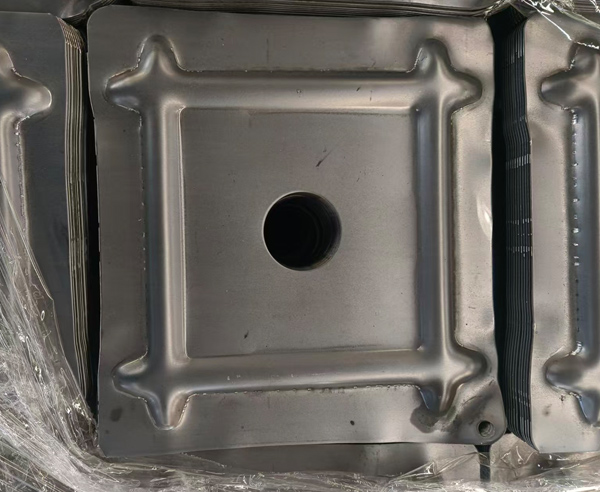

Butterfly Plate Roof Support is a kind of plate used with bolt to have a larger area to support the rock and make the bolt system has a better support performance.It is also used for fixing and bearing mesh.This plate has a stable structure,is easy to install,has a unique design,excellent force bearing effect. It is widely applied in mine roof support,various tunnel support,coal mine,metal mine and highway slop support.
Butterfly Plate Roof Support Specification
| Plate Type | Length (mm) | width (mm) | Thickness (mm) | Unit Weight (kg) | Dog ear |
| TRBP | 300 | 280 | 2 | 1.46 | N |
Butterfly Plate Roof Support Features & Advantages
Aternate sizes also available as customer's requirement.
V configuration reinforces much more bearing capacity.
Enlarge contact surface area to increase the support effect.
Used friendly round corners to avoid scratching the workers.
The long hole is used for handing service lines.
Available in black or hot dip galvanized.
Butterfly Plate Roof Support Package
Butterfly plates are packed with plywood boxes,steel pallets and wrapping films.
As an important part of the anchor bolt support system,the performance of the plate is directly affects the support effect of the anchor bolt.Yonry with the manufacture specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
