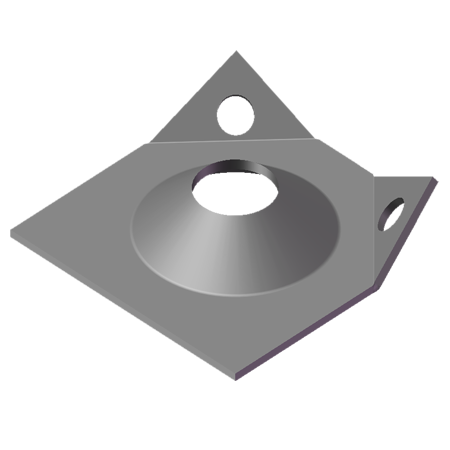

Domed plate 150X150X5
- -The Domed plate 150X150X5 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -The Domed plate 150X150X5 is made from 120-200 millimeters wide hot rolled steel.
- -Hot rolled steel reference to the GBT3524-2015 standard.
- -Domed plate 150X150X5 reference to the AS/NZS 1594:2002 standard.
- -Provide stable support for the bolt even in the rough rock layers.
- -The galvanized coating is available to protect the plates from corrosion.
Domed plate 150X150X5
TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
As an important part of the anchor bolt support system, the performance of the tray directly affects the support effect of the anchor bolt. The function of the tray is to transfer the thrust generated by the locking moment of the nut to the top side, creating the initial anchoring force. At the same time, it transmits the pressure on the top side of the roadway to the anchor bolt, generating working resistance. Together, they reinforce the surrounding rock and prevent the displacement of the top side of the roadway.
Domed plate 150X150X5 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRDP | 120 | 120 | 4 | 0.45 | Y |
| TRDP | 125 | 125 | 4 | 0.49 | Y |
| TRDP | 150 | 150 | 4 | 0.71 | Y |
| TRDP | 150 | 150 | 5 | 0.88 | Y |
| TRDP | 150 | 150 | 6 | 1.06 | Y |
| TRDP | 150 | 150 | 8 | 1.42 | Y |
| TRDP | 150 | 150 | 12 | 2.12 | N |
| TRDP | 200 | 200 | 4 | 1.26 | Y |
| TRDP | 200 | 200 | 5 | 1.57 | Y |
| TRDP | 200 | 200 | 8 | 2.51 | N |
| TRDP | 200 | 200 | 10 | 3.14 | N |
| TRDP | 200 | 200 | 12 | 3.77 | N |
| TRDP | 200 | 200 | 14 | 4.40 | N |
| TRDP | 200 | 200 | 16 | 5.02 | N |
Domed plate 150X150X5 Features & Advantage
Custom sizes can be provided to meet customer specifications.
The dome design significantly increases the bearing capacity.

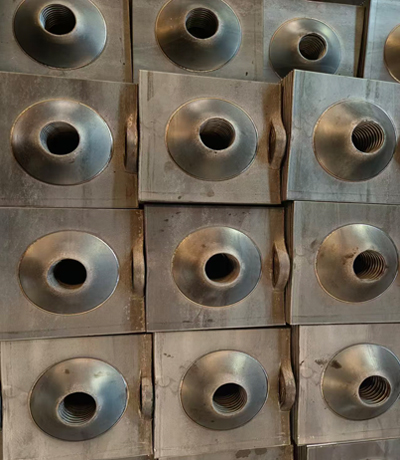

Features a dog ear option for easy attachment of service lines.
The hole diameter in the friction bolt plate exceeds the bolt diameter by 2mm.
For thread bolt plates, the hole diameter is typically 4-5mm larger than the bolt, unless used with a dome ball.
Offered in either a black finish or hot-dip galvanized.
Domed plate 150X150X5 Package
Domed plates are packed with wire slips, plywood box, steel pallets & wrapping films.
