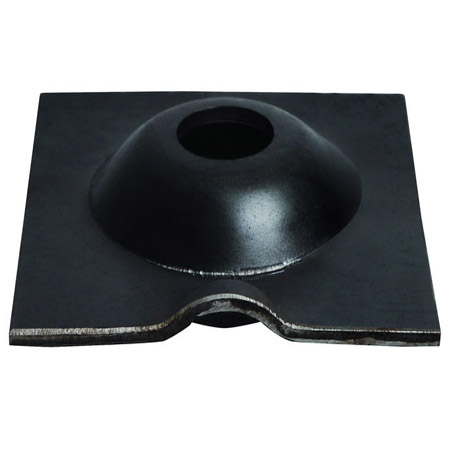

Domed plate 150X150X6
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -The Domed plate 150X150X6 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -The Domed plate 150X150X6 is made from 120-200 millimeters wide hot rolled steel.
- -Domed plate 150X150X6 reference to the AS/NZS 1594:2002 standard.
- -Provide stable support for the bolt even in the rough rock layers.
- -The galvanized coating is available to protect the plates from corrosion.
Domed plate is a product used to support anchor bolt. Its function is to provide support and distribute the load between the anchor bolt and the coal mine or rock body to prevent the anchor bolt from failing due to excessive load.The design of pallets is usually round or square, and plates of different sizes are selected based on the diameter and length of the anchor bolts.
Domed plate 150X150X6 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRDP | 120 | 120 | 4 | 0.45 | Y |
| TRDP | 125 | 125 | 4 | 0.49 | Y |
| TRDP | 150 | 150 | 4 | 0.71 | Y |
| TRDP | 150 | 150 | 5 | 0.88 | Y |
| TRDP | 150 | 150 | 6 | 1.06 | Y |
| TRDP | 150 | 150 | 8 | 1.42 | Y |
| TRDP | 150 | 150 | 12 | 2.12 | N |
| TRDP | 200 | 200 | 4 | 1.26 | Y |
| TRDP | 200 | 200 | 5 | 1.57 | Y |
| TRDP | 200 | 200 | 8 | 2.51 | N |
| TRDP | 200 | 200 | 10 | 3.14 | N |
| TRDP | 200 | 200 | 12 | 3.77 | N |
| TRDP | 200 | 200 | 14 | 4.40 | N |
| TRDP | 200 | 200 | 16 | 5.02 | N |
Domed plate 150X150X6 Features & Advantages
Custom sizes can be provided to meet specific customer needs.
The dome-shaped design significantly increases bearing capacity.
Features a dog ear design for easy suspension of service lines.
Friction bolt plate's hole diameter is 2mm larger than the bolt for a snug fit.
Thread bolt plate's hole diameter is 4-5mm larger than the bolt, unless used with a dome ball.
Offered in either a black finish or hot-dip galvanized for added durability.
Domed plate 150X150X6 Package

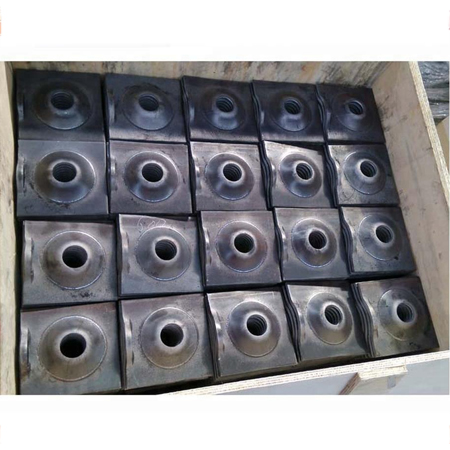

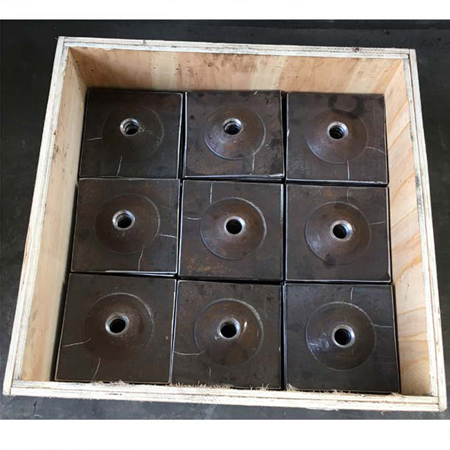

Domed plates are packed with wire slips, plywood box, steel pallets and wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
