Cable Volcano Plate
- -Custom sizes can be provided according to the specific needs of customers.
- -Suitable for mines with limited overhead space.
- -Appropriate for use on mostly flat rock surfaces.
- -Ideal for areas requiring minimal to no angular adjustment.
- -Multi-hole plates are offered to secure both breather tubes and grout tubes when used with cable bolts.
- -Offered with a choice of black or hot-dip galvanized finish.
Cable Volcano Plate
The Cable Volcano plate is to transmit the thrust generated by the locking torque of the nut to the top side to generate the initial anchor force, and at the same time to transmit the pressure of the top side of the roadway to the bolt to generate working resistance, strengthen the surrounding rock together, and prevent the roadway displacement of the top gang.
Cable Volcano Plate Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Mining plates are widely used in mining engineering. The appropriate model and thickness should be selected according to the engineering requirements. Square pallets are more common. The specifications of anchor bolts and the installation environment, as well as the load-bearing capacity and stability of plates, are of vital importance to construction safety.

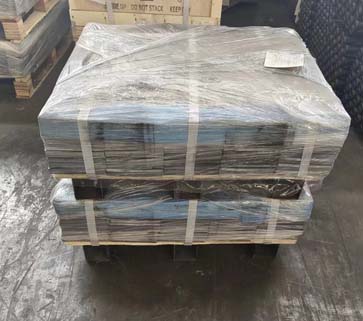

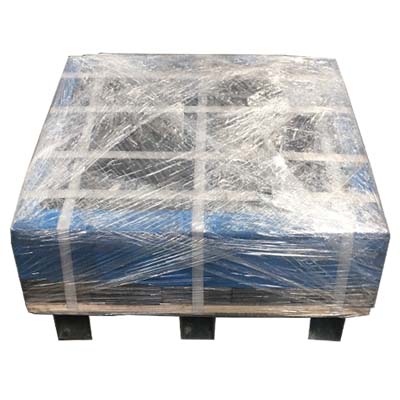

Cable Volcano Plate Package

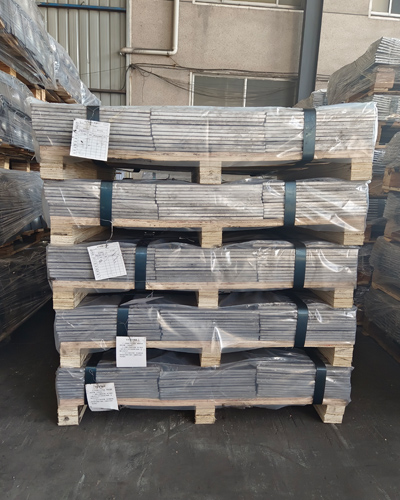

Cable Volcano Plates are packed with plywood box, steel pallets & wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
