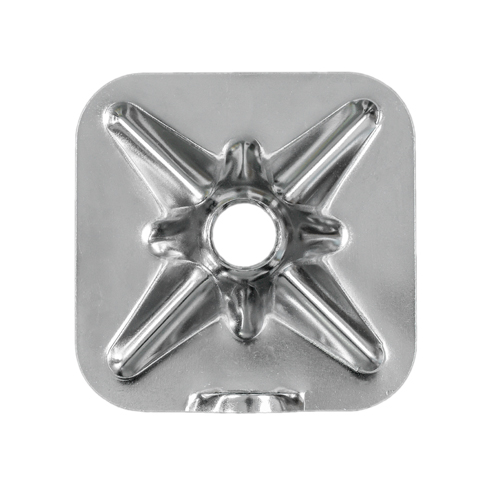

Star Anchor Plate
- -Made from hot-rolled steel extruded by star mold.
- -They are light weight and easy to install, with good surface control effect.
- -Star Plate for Split set engineered to evenly distribute the load from the roof bolt in all directions, effectively preventing loose strata from collapsing between split sets.

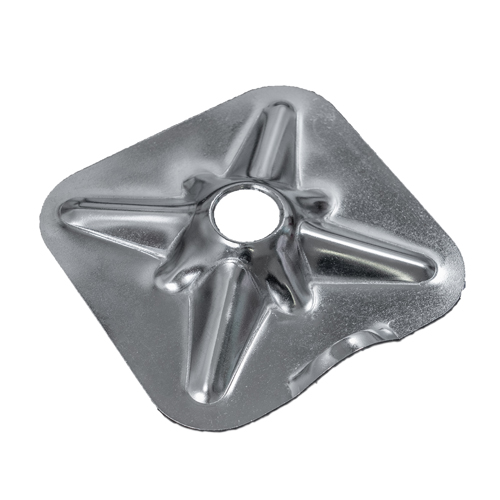

Star Anchor Plate
The star anchor plates are mainly made of high-strength carbon steel plates, which are formed by shearing, punching and perforating. They are light weight and easy to install, with good surface control effect. They are indispensable for mine tunnels, slopes and tunnel support.
Tonry with the manufactured bolt plate,cable plate with alloy sheet made of a special contour design,mechanical effect,light and easy to instally,with all kinds of bolt,cable facilities,improve the control effect of the surface.
Star Anchor Plate Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) |
| TRSP | 150 | 150 | 4 |
| TRSP | 150 | 150 | 5 |
| TRSP | 150 | 150 | 6 |
| TRSP | 200 | 200 | 4 |
| TRSP | 200 | 200 | 5 |
| TRSP | 200 | 200 | 6 |
Star Anchor Plate Features & Advantages
Available with a dog ear feature for easy attachment of service lines.
Features rounded corners to minimize the risk of mesh damage during loading.
The dome-shaped profile permits up to 18° of alignment flexibility when installing rock bolts with a domed ball washer.
Custom sizes can be provided according to specific customer needs.
Enhanced load-bearing capacity due to the dome configuration.
Options include a black finish or a hot-dip galvanized coating.
Star Anchor Plate Package

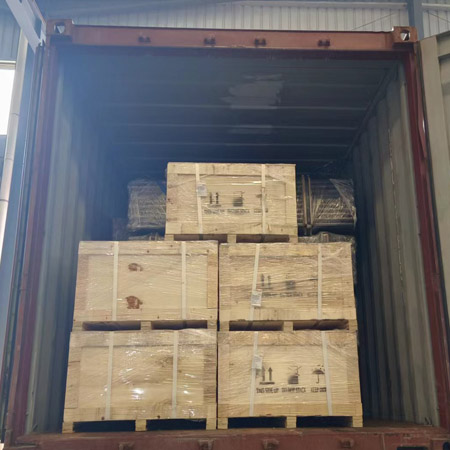

Star plates are packed with wire slips, plywood box, steel pallets & wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
