Flat Plate 150x150x12 For Cable Bolt
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -Flat Plate 150x150x12 For Cable Bolt helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat Plate 150x150x12 For Cable Bolt can be combined with cable bolts to provide support.

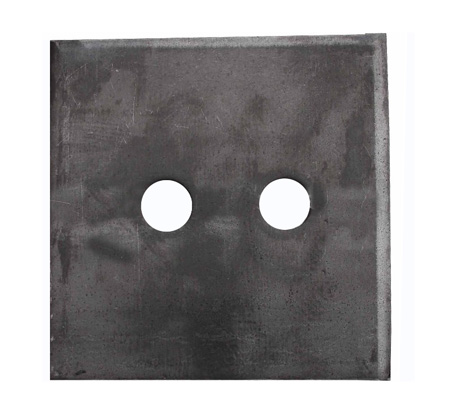

- -Flat Plate 150x150x12 For Cable Bolt are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Flat Plate 150x150x12 For Cable Bolt
The Flat plates are mainly made of high-strength carbon steel plates, which are formed by shearing, punching and perforating. They are lightweight and easy to install, with good surface control effect. They are indispensable for mine tunnels, slopes and tunnel support.
Flat Plate 150x150x12 For Cable Bolt Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Flat Plate 150x150x12 For Cable Bolt Features & Advantages
Custom dimensions can be tailored to satisfy individual customer needs.
Designed for mining environments where overhead space is restricted.
Well-suited for deployment on mostly level rock formations.
Perfect for situations demanding little to no angular adjustment.
Multi-hole options are provided for affixing breather/grout tubes alongside cable bolts.
Offered in either a black finish or with a hot-dip galvanization for enhanced longevity.
Flat Plate 150x150x12 For Cable Bolt Package

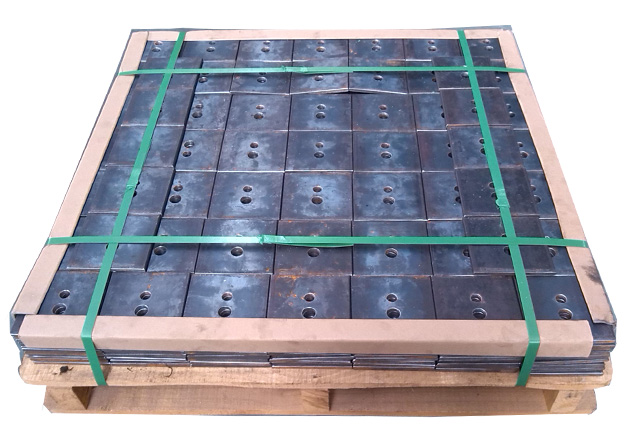

Flat plates are packed with plywood boxes, steel pallets & wrapping films.
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized products from different mining companies.
