Domed plate 150X150X4

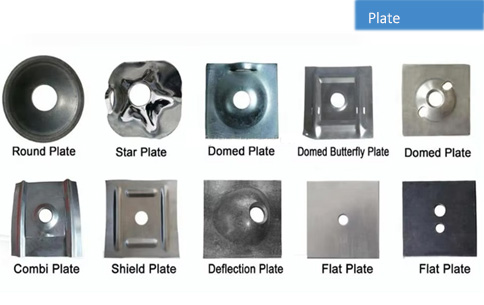

- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -The domed plate is made from 120-200 millimeters wide hot rolled steel.
- -The Domed plate 150X150X4 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Domed plate reference to the AS/NZS 1594:2002 standard.
- -Provide stable support for the bolt even in the rough rock layers.
- -The galvanized coating is available to protect the plates from corrosion.
Domed Plate is a product used to support anchor bolt. Its function is to provide support and distribute the load between the anchor bolt and the coal mine or rock body to prevent the anchor bolt from failing due to excessive load.The design of pallets is usually round or square, and plates of different sizes are selected based on the diameter and length of the anchor bolts.
Domed plate 150X150X4 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRDP | 120 | 120 | 4 | 0.45 | Y |
| TRDP | 125 | 125 | 4 | 0.49 | Y |
| TRDP | 150 | 150 | 4 | 0.71 | Y |
| TRDP | 150 | 150 | 5 | 0.88 | Y |
| TRDP | 150 | 150 | 6 | 1.06 | Y |
| TRDP | 150 | 150 | 8 | 1.42 | Y |
| TRDP | 150 | 150 | 12 | 2.12 | N |
| TRDP | 200 | 200 | 4 | 1.26 | Y |
| TRDP | 200 | 200 | 5 | 1.57 | Y |
| TRDP | 200 | 200 | 8 | 2.51 | N |
| TRDP | 200 | 200 | 10 | 3.14 | N |
| TRDP | 200 | 200 | 12 | 3.77 | N |
| TRDP | 200 | 200 | 14 | 4.40 | N |
| TRDP | 200 | 200 | 16 | 5.02 | N |
Domed plate 150X150X4 Features & Advantages
Custom sizes can be provided according to customer specifications
The dome design significantly increases the bearing capacity
Features a dog ear design for convenient hanging of service lines
The hole diameter in the friction bolt plate exceeds the bolt diameter by 2mm
For thread bolt plates, the hole diameter is typically 4-5mm larger than the bolt, unless used with a dome ball
Offered in either a black finish or hot-dip galvanized for added durability
Domed plate 150X150X4 Package

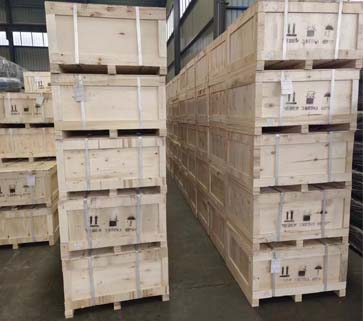

Domed plates are packed with wire slips, plywood box, steel pallets and wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
