Osro Anchor Net Support
- -High energy absorbing.
- -Allows for movement without weakening the integral mesh strength.
- -The longitudinal wire strand is able to slip under load conditions through the cross wires to distribute load over several bolts.
- -Pig tail cross wire design allows for multiple take upon bolts.
- -Available in black or hot dip galvanized.
Osro Anchor Net Support Introduction
Osro Anchor Net Support is a rectangular mesh piece that supports broken ground between rock anchor points by providing a continuous grid between anchor points. The Osro anchor net support can be fixed with 2 or more rock anchors. on top of the rock, and can be bent at will to conform to the surface of the rock. Since anchors can pass through any point of the mesh, the mesh can be used with any anchor. Osro straps are available in a variety of lengths and widths, so they can be matched with various specifications of other tools.
| Properties | Technical Specificantion |
| Longitudinal Wire Diameter | 10mm |
| Cross Wire Diameter | 6mm |
| Nominal Length | 6000mm |
| Norminal Width | 300mm |
| Wire Aperture | 75mmX150mm |
| Yield Strength of Wire | 400MPa MIN |
| Tensile Strength of Wire | 500-750MPa |

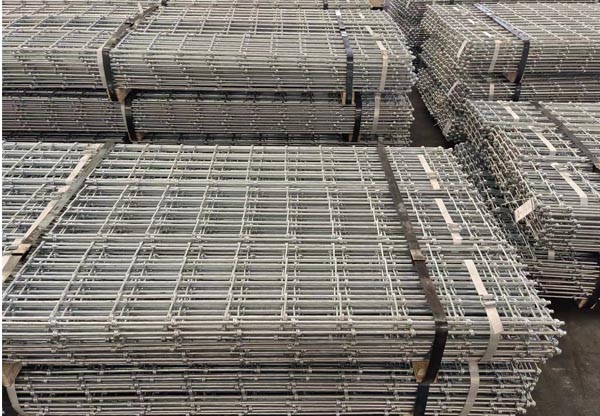

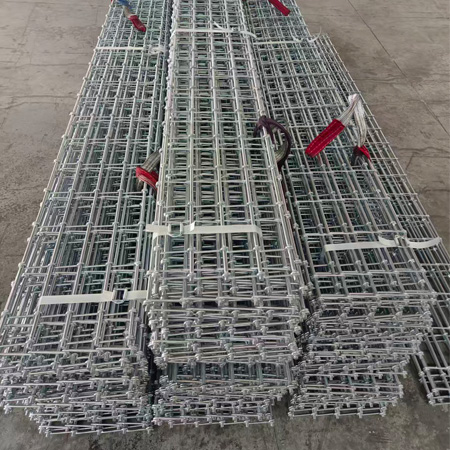

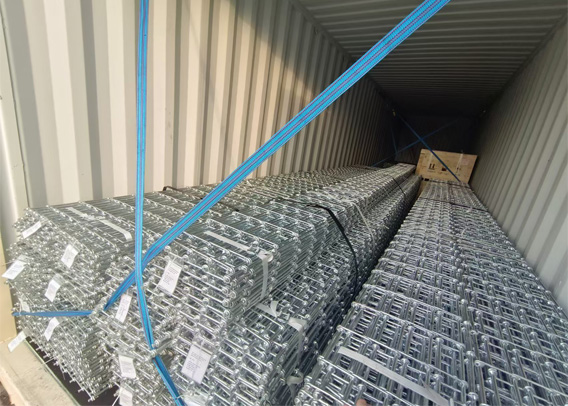

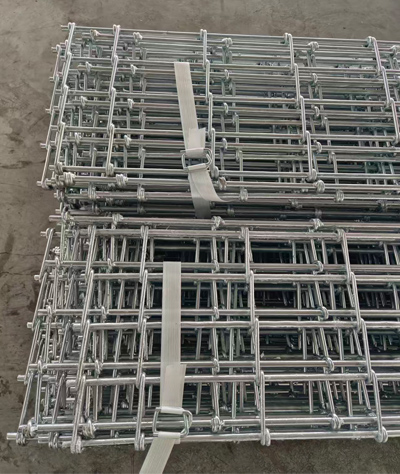

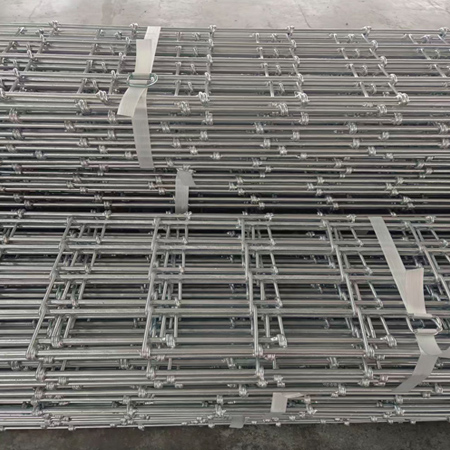

Osro Anchor Net Support Packaging:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 25pcs
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized products from different mining companies.

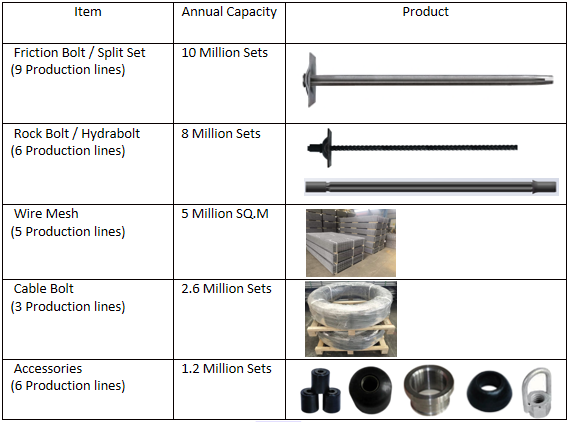

The following is the annual production capacity of several major products.
