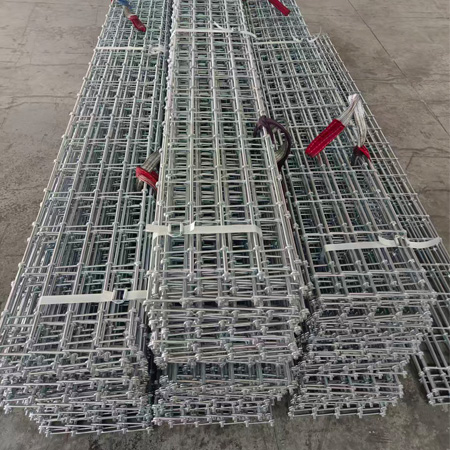

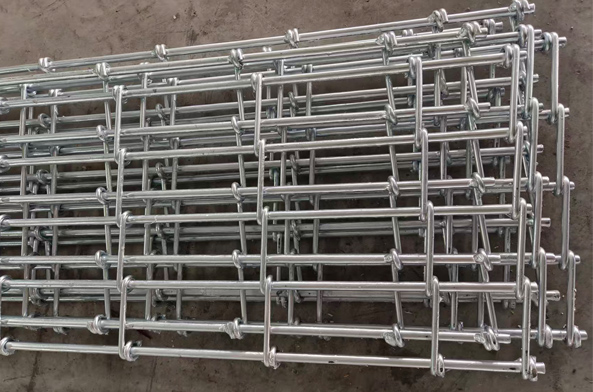

Welded Mesh Strap

Welded Mesh Strap

Welded mesh strap is a common and widely used type of coal mine support mesh. It is an efficient and energy-saving support network. Using thicker steel wire or steel bars as materials, the electric welded mesh is spot welded into a tough square mesh structure. Compared with woven meshes such as chain link fence, strong welded joints provide double protection for tunnels. Welded mesh strap can be used in shotcrete applications, making construction faster, easier, and safer.

Welded Mesh Strap Features

1. High energy absorbing.

2. Pig tail cross wire design allows for multiple take upon bolts.

3. Allows for movement without weakening the integral mesh strength.

4. The longitudinal wire strand is able to slip under load conditions through the cross wires to distribute load over several bolts.

5. Available in black or hot dip galvanized.

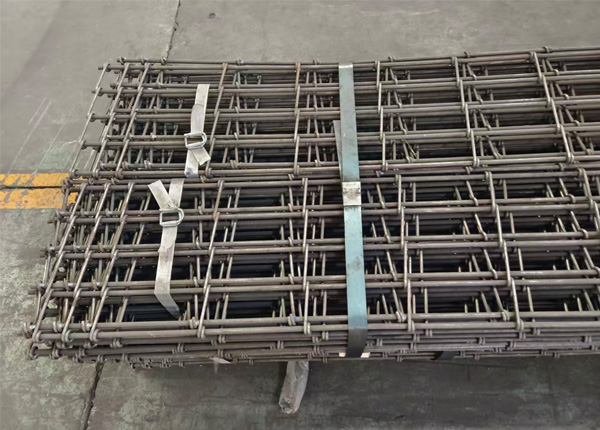

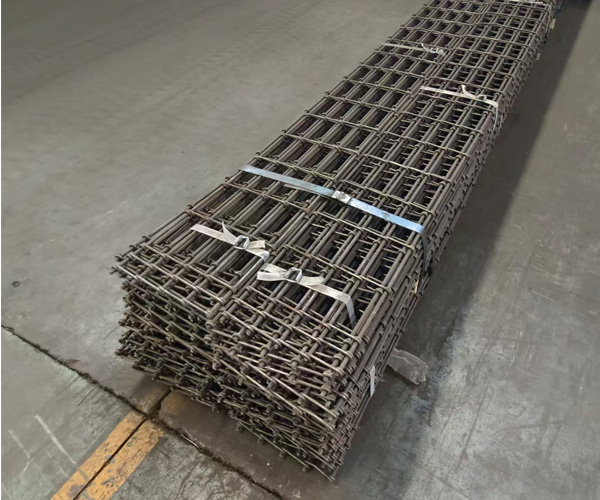

Welde Mesh Strap Package

1. Steel or fiber strapping.


2. Bundles size to suit the customer,generally packs of 20 or 25pcs.
