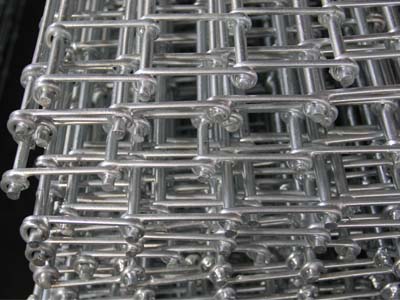

Wire Mesh Strap Support
- -Made of high-strength steel wire.
- - Used in loose strata to avoid falling rocks.
- -Easy to install and replace, reducing labor costs.
- -Sturdy structure and long service life.
Mine mesh Strap Support is a common and widely used type of coal mine support mesh. It is an efficient and energy-saving support network. Characteristic: Strong welding, uniform mesh, smooth surface, corrosion resistance, strong strength, strong protection.
Wire Mesh Strap Support Features:
1.High energy absorbing.
2.Pig tail cross wire design allows for multiple take upon bolts.
3.Allows for movement without weakening the integral mesh strength.
4.The longitudinal wire strand is able to slip under load conditions through the cross wires to distribute load over several bolts.
5.Available in black or hot dip galvanized.
| Properties | Technical Specificantion |
| Longitudinal Wire Diameter | 10mm |
| Cross Wire Diameter | 6mm |
| Nominal Length | 6000mm |
| Norminal Width | 300mm |
| Wire Aperture | 75mmx150mm |
| Yield Strength of Wire | 400MPa MIN |
| Tensile Strength of Wire | 500-750MPa |

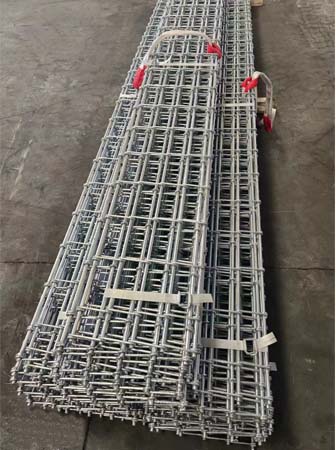

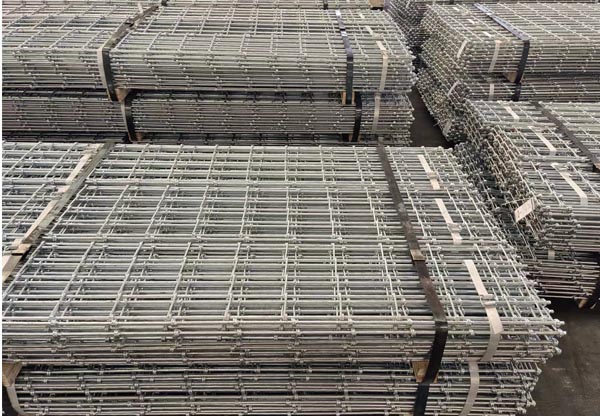

Wire Mesh Strap Support Packaging:
1. Steel or Fiber strapping.
2. Bundle sizes to suit the customer, generally packs of 50pcs.
