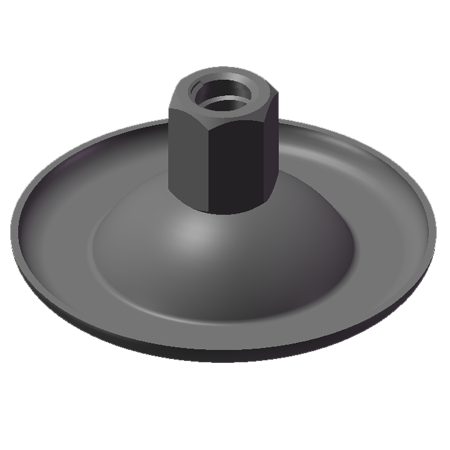

Mesh Plate
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -TONRY plate helps to distribute the roof bolt load evenly in all directions to prevent loose strata falling between rock bolts.
- -The mesh plate is made by welding a flange nut to the plate.
- -The mesh plate is made from hot rolled steel.
- -Mesh plate reference to the AS/NZS 1594:2002 standard.
- -Mesh plate provides support for the pre-installed rock bolt.
- -The galvanized coating is available according to customers' needs.
Mesh Plate
When choosing a plate, firstly, it is necessary to meet the strength matching between the mesh plate and the anchor bolt, so as to avoid the phenomenon of anchor bolt perforation caused by insufficient strength of the anchor plate. The second is to meet the matching of the anchor plate and the anchor bolt body on the supporting structure, so as to avoid uneven force on the anchor bolt body and nut due to the mismatch between the anchor bolt body and the tray on the supporting structure, which will affect the support of the roadway protection effect.
Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) |
| TRMP | 200 | 200 | 4 |
| TRMP | 200 | 200 | 5 |
| TRMP | 200 | 200 | 6 |
| TRMP | 150 | 150 | 4 |
| TRMP | 150 | 150 | 6 |
Alternate sizes also available as customer’s requirements.
Welded nut of any size to thread onto existing installed rock bolts.
Available in black or hot dip galvanized.
Package
Mesh plate are packed with plywood box.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
