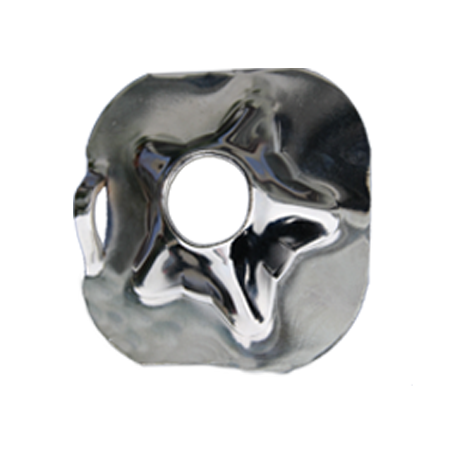

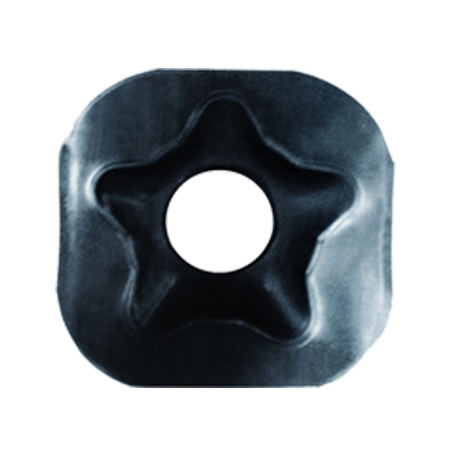

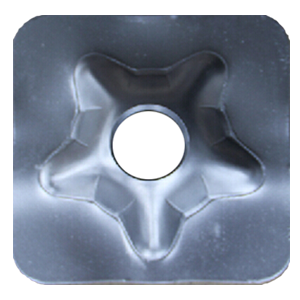

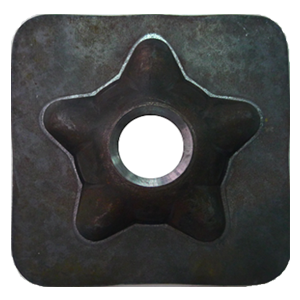

Star Plate
- -The Star Plate is made from hot-rolled steel extruded by star mold.
- - TONRY specializes in creating an extensive selection of plates and combination plates compatible with a variety of rock bolts.
- - The Star Plate is engineered to evenly distribute the load from the roof bolt in all directions, effectively preventing loose strata from collapsing between rock bolts.
- -The Star Plate can resist warping under high pressure.
Star Plate
The function of the star plate is to transfer the thrust generated by the locking moment of the nut to the top side, creating the initial anchoring force. At the same time, it transmits the pressure on the top side of the roadway to the anchor bolt, generating working resistance. Together, they reinforce the surrounding rock and prevent the displacement of the top side of the roadway.
Star Plate Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) |
| TRSP | 150 | 150 | 4 |
| TRSP | 150 | 150 | 5 |
| TRSP | 150 | 150 | 6 |
| TRSP | 200 | 200 | 4 |
| TRSP | 200 | 200 | 5 |
| TRSP | 200 | 200 | 6 |
Star Plate Features & Advantages

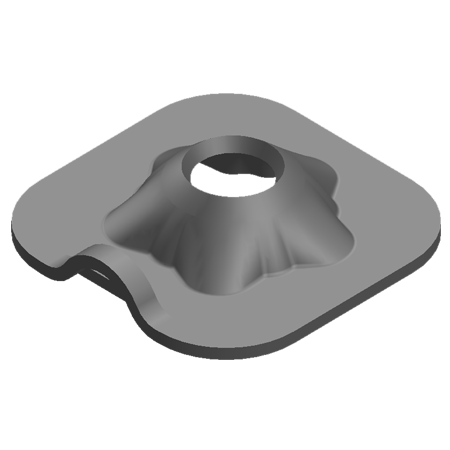

Offered with a dog ear feature for suspending service lines
Designed with rounded corners to minimize mesh damage during loading
The dome shape allows for 18° alignment angles when fitting rock bolts with a domed ball washer
Provided in various sizes to meet customer needs
Enhanced bearing capacity due to the dome configuration
Choice of black or hot dip galvanized finishes
Star Plate Package
Star plates are packed with wire slips, plywood box, steel pallets & wrapping films.
