High Strength Anchor Cable Bolt

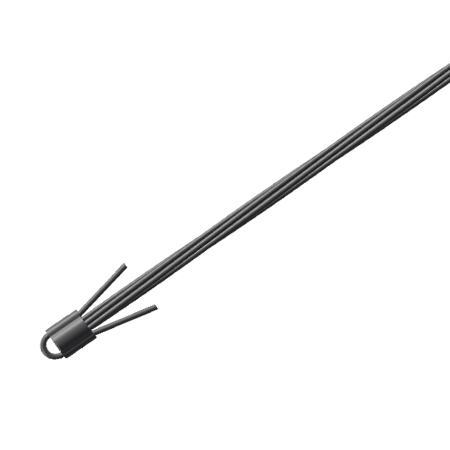

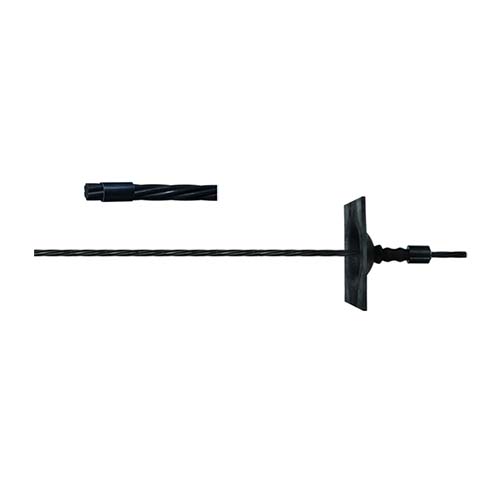

- -Plain cable bolt and buib cable bolt
- -At the top of the bulb cable bolt,three bulbs to reinforce resin mixing,achieve point anchorage and pretension
- -The bulbs can be modified in frequency and diameter based on customer's request,the diameter is 21mm-38mm
- -Fish hooks fitted to top of cables for retention prior to grouting
High Strength Anchor Cable Bolt Functions
High Strength Anchor Cable Bolt is made of high strength steel wire,the material grade id 1860Mpa.Comparre with the common rock bolt.High Strength Anchor Cable Bolt could provide higher tensile strength,anti-shearing capacity and incomparable bending capacity,which could prevent the lateral movement of strata.Usually be used in the area where common grouted support is vacant or inadequate,and especially good for permanent ground support with some resin cartridge.
High Strength Anchor Cable Bolt Features & Advantages
High Strength Anchor Cable Bolt
Single strand or twin strand options available
Fish hooks fitted to top of cables for retention prior to grouting
Resin can be used for instant anchoring,while grout for permanent support
High Strength Anchor Cable Bolt Mechanical Properties
| Item No. | TRCB152 | TRCB178 | TRCB189 | TRCB216 | TRCB218 |
| Diameter(mm) | 15.2 | 17.8 | 18.9 | 21.6 | 21.8 |
| Strands | 1*7 | 1*7 | 1*7 | 1*7 | 1*19 |
| Mass per meter(kg) | 1.1 | 1.5 | 1.73 | 2.24 | 2.48 |
| Cross sectional area(m㎡) | 140 | 191 | 220 | 285 | 313 |
| Steel Grade(Mpa) | 1860 | 1860 | 1860 | 1860 | 1860 |
| Tensile Strength(kN) | 260(26.5T) | 355(36.2T) | 409(41.7T) | 530(54.1T) | 583(59.5T) |
| Min 0.2% extension under load(kN) | 229 | 311 | 360 | 466 | 513 |
| Min Elongation(%) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
High Strength Anchor Cable Bolt Accessories

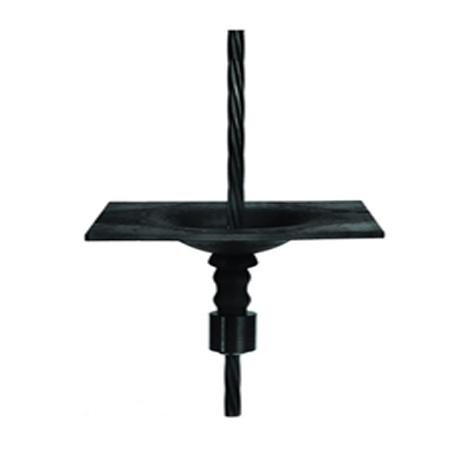

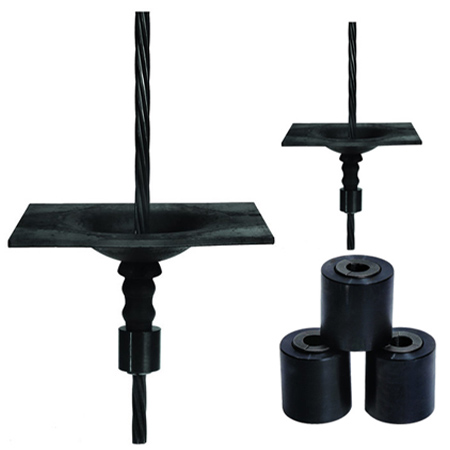

Fish Hooks,Expansion shell,,Grouting tube,Breathing tube,Bearing plate
High Strength Anchor Cable Bolt Application
Mines
Tunnels
Slopes
Places where need ground support
High Strength Anchor Cable Bolt Length & Package

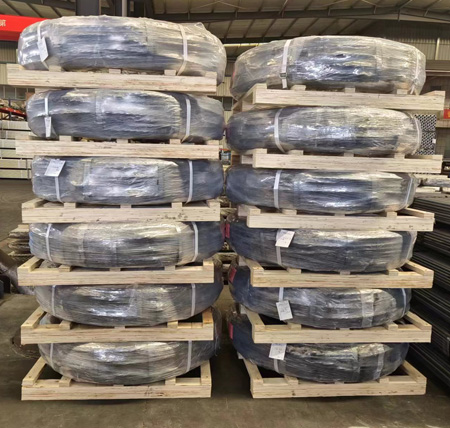

Length:500mm to 6200mm in pieces or in coils
Package:20 pcs each bundle
As customer’s requirement
How to work
The nature of the ground must be evaluated.
Drill holes according to the diameter and length of the bolt, ensuring it's 200mm to 500mm shorter than the bolt itself.
Affix roughly one meter of grout tube to the cable bolt's end, leaving enough excess to connect to the pump.
Fix a breather tube along the entire length of the bolt, allowing it to extend approximately two meters from the hole.
Insert the High Strength Anchor Cable Bolt into the hole and seal it to prevent grout loss during pumping.
After the grout has set,tension the High Strength Anchor Cable Bolt.
Connect the grout tube to the pump and submerge the breather tube in a water container. Start pumping and observe air bubbles escaping in the water.
