Posimix Bolt
- -Available in left-hand or right-hand thread.
- -Higher thread ribs compared to other bars,mix resin better and improve anchorage.
- -Suitable for use with either resin cartridges or cement grout.
- -It has equal strength on the entire length.
- -Due to continuous thread on the entire length, the nut can be fastened upward at any place. This will increase the material utilization ratio and save cost.
Posimix Bolt Functions

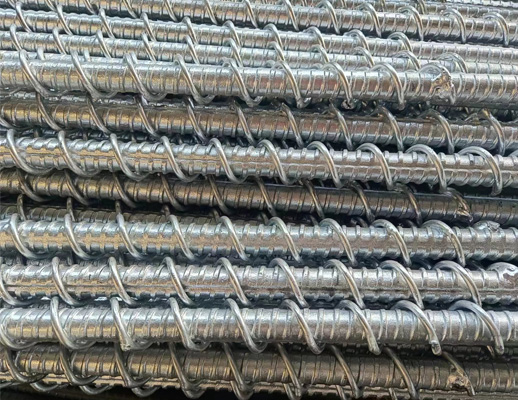

Posimix Bolt features a high-strength metal bolt body, continuous threads rolled throughout the entire length, specially designed spring wire attached to the up-hole end ensures that the resin components are thoroughly combined and distributed evenly and uniform strength throughout the length. The fastening end is equipped with prestressed washers and ball-shaped nuts, which makes it material-saving, labor-saving, and uniform strength.
The Posimix Bolt designed by Tonry for the metalliferous mining have been supplied in mines for many years and have been recognized by customers.Together with a torque dome nut, supplied as standard, it represents state of the arttechnology in the one step installation of roof bolts for mining,tunneling and strata reinforcement.
Posimix Bolt Mechanical Properties
| Diameter | Yield Strength | Tensile Strength | Elongation A% | Mass Meter | Core Dia | Major Dia | |||||||
| Min | Typ. | Min | Typ. | Min | Typ. | ||||||||
| 20mm | 515 MPa | 162 kN | 560 MPa | 176 kN | 630 MPa | 198 kN | 710 MPa | 220 kN | 18% | 24% | 2.46KGS | 19.5mm | 22.5mm |
| 22mm | 525 MPa | 199 kN | 590 MPa | 224 kN | 652 MPa | 247 kN | 761 MPa | 289 kN | 18% | 24% | 2.98KGS | 21.2mm | 23.8mm |
| 25mm | 550 MPa | 269 kN | 610 MPa | 298 kN | 684 MPa | 335 kN | 798 MPa | 391 kN | 18% | 24% | 3.85KGS | 24.8mm | 28.5mm |
Posimix Bolt Bearing plate
Round plate, domed plate
Posimix Bolt Accessories
Domed nut, hex nut, anti-friction washer, domed ball
Posimix Bolt Length and Package
Length: 1.8m/2.0m/2.2m/2.4m or as requested

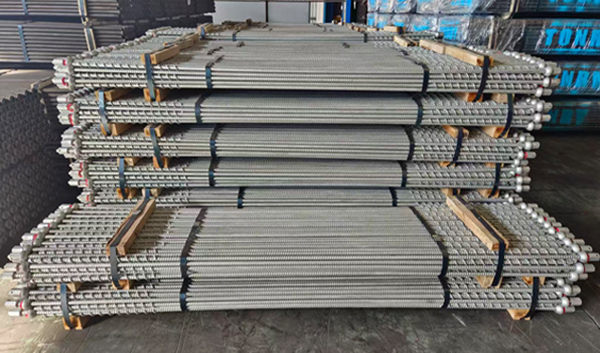

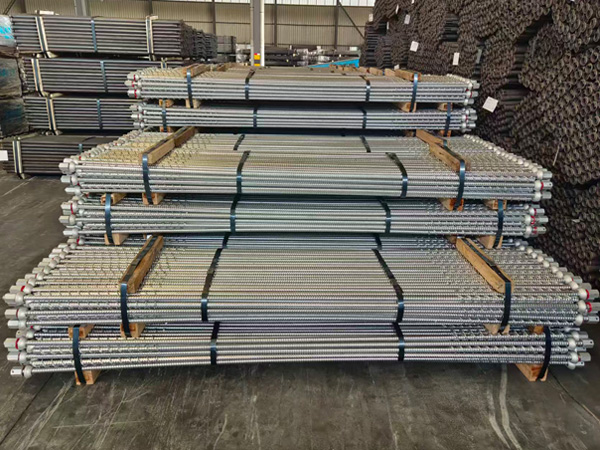

Package: Bolts are packaged in bundles.
Posimix Bolt Applications
Mines
Tunnels
Slopes
Places that need ground support
