Posimix Dynamic Bolt
- -Offered with either left-hand or right-hand threading.
- -Enhanced thread ribs ensure better resin mixing and strengthened anchorage.
- -Compatible with both resin cartridges and cement grout.
- -Maintains consistent strength throughout its length.
- -The continuous thread allows for nut fastening at any point along the length, improving material utilization and reducing costs.
- -Available in either a black or hot-dip galvanized finish.
Posimix Dynamic Bolt Functions
The main body of the Posimix Dynamic Bolt is a full thread bar bolt, with the top end coiled into a spring shape using steel wire. The spring-shaped steel wire can thoroughly mix the resin. Installation is quick and convenient, providing stable support for the rock strata. A plastic sheath can be fitted over the middle section to provide dynamic capabilities to the spring bolt.
Posimix Dynamic Bolt Mechanical Properties
| Diameter | Yield Strength | Tensile Strength | Elongation A% | Mass Meter | Core Dia | Core Dia | |||||||
| Min | Typ. | Min | Typ. | Min | Typ. | ||||||||
| 20mm | 515 MPa | 162 kN | 560 MPa | 176 kN | 630 MPa | 198 kN | 710 MPa | 220 kN | 18% | 24% | 2.46KGS | 19.5mm | 22.5mm |
| 22mm | 525 MPa | 199 kN | 590 MPa | 224 kN | 652 MPa | 247 kN | 761 MPa | 289 kN | 18% | 24% | 2.98KGS | 21.2mm | 23.8mm |
| 25mm | 550 MPa | 269 kN | 610 MPa | 298 kN | 684 MPa | 335 kN | 798 MPa | 391 kN | 18% | 24% | 3.85KGS | 24.8mm | 28.5mm |
Posimix Dynamic Bolt Bearing plate
Round plate, domed plate,combi plate
Posimix Dynamic Bolt Accessories
Domed nut, hex nut, anti-friction washer, domed ball
Posimix Dynamic Bolt Length & Package
Length: 1.8m/2.0m/2.2m/2.4m or as requested

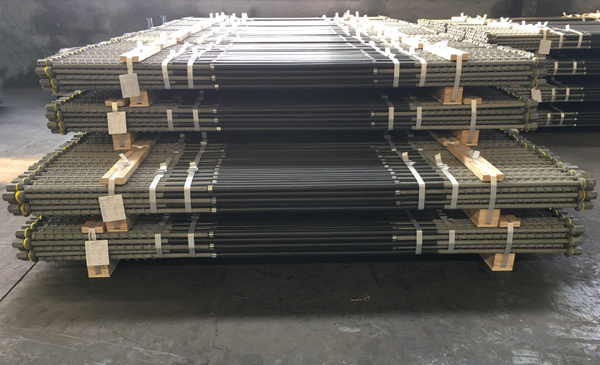

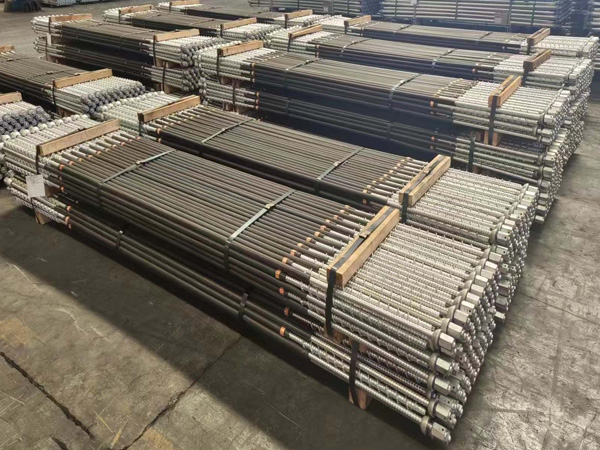

Package: Bolts are packaged in bundles.
Applications
Mines
Tunnels
Slopes
Places that need ground support
