Sharp End Threadbar Bolt Support
Sharp End Threadbar Bolt Support Functions
The Sharp end threadbar bolt support is a kind of reinforcement support method used in surface engineering such as coal mine,slop deep foundaition pit of rock and soil and underground chamber construction such as tunnel and stope.Ploe into the surface of the rock mass or cavern surrounding rock mass in the drilled holes in advance,to use its head,the special structure of the rod body and tail plate blend and stability of rock mass surrounding rock and suspension effect,effect of composite beams,reinforcement effect,in order to zchieve the purpose of supporting.
Sharp End Threadbar Bolt Support Mechanical Properties
| Diameter | Yield Strength | Tensile Strength | Elongation A % | Mass Meter | Core Dia | Major Dia | |||||||
| Min | Typ. | Min | Typ. | Min | Typ. | ||||||||
| 20mm | 515 MPa | 162KN | 560 MPa | 176 KN | 630 MPa | 198 KN | 710 MPa | 220 KN | 18% | 24% | 2.46 KGS | 19.5mm | 22.5mm |
| 22mm | 525 MPa | 199KN | 590 MPa | 224 KN | 652 MPa | 247 KN | 760 MPa | 289 KN | 18% | 24% | 2.98 KGS | 21.2mm | 23.8mm |
| 25mm | 550 MPa | 269KN | 610 MPa | 298 KN | 684 MPa | 335 KN | 798 MPa | 391 KN | 18% | 24% | 3.85 KGS | 24.8mm | 28.5mm |
Sharp End Threadbar Bolt Support Bearing plate
Round plate, domed plate,combi plate
Sharp End Threadbar Bolt Support Accessories

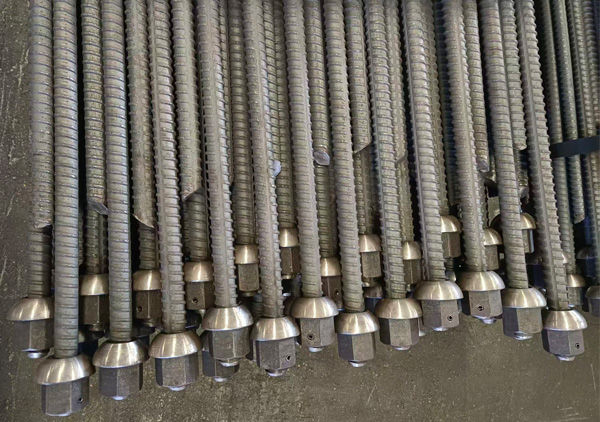

Domed nut, hex nut, anti-friction washer,domed ball
Sharp End Threadbar Bolt Support Length and Package

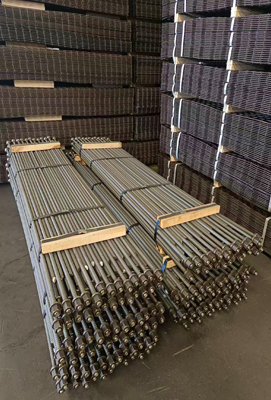

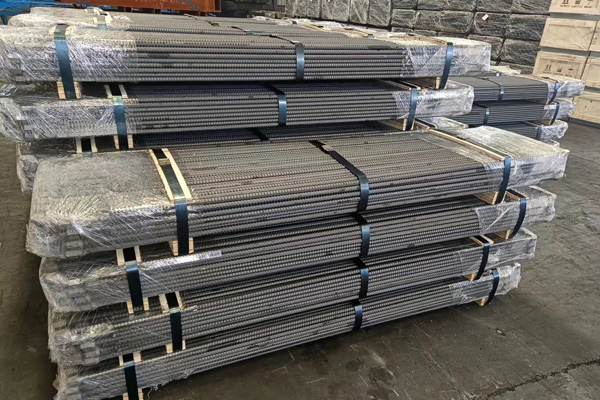

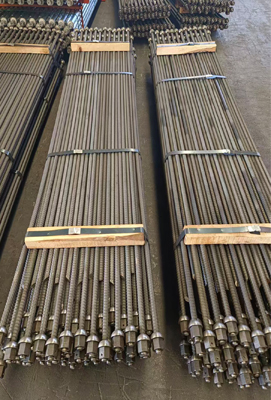

1.Bolts are packaged in bundles.
2.Bolt fittings, such as nuts, anti-friction washers and domed balls, are supplied fitted to rock bolts in the configuration requested.
Sharp End Threadbar Bolt Support Applications
Mines
Tunnels
Slopes
Places where need ground support
