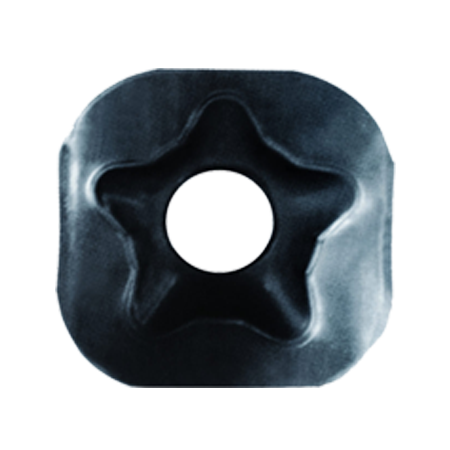

Star Plate 200x200x5
- -The Star Plate 200x200x5 is made from hot-rolled steel extruded by star mold.
- -TONRY specializes in creating an extensive selection of plates and combination plates compatible with a variety rock bolts.
- -Star Plate 200x200x5 is engineered to evenly distribute the load from the roof bolt in all directions, effectively preventing loose strata from collapsing between rock bolts.
- -The Star Plate 200x200x5 can resist warping under high pressure.
Star Plate 200x200x5
Star Plate as an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. The function of the plate is to transfer the thrust generated by the locking moment of the nut to the top side, creating the initial anchoring force. At the same time, it transmits the pressure on the top side of the roadway to the anchor bolt, generating working resistance. Together, they reinforce the surrounding rock and prevent the displacement of the top side of the roadway.
Star Plate 200x200x5 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) |
| TRSP | 150 | 150 | 4 |
| TRSP | 150 | 150 | 5 |
| TRSP | 150 | 150 | 6 |
| TRSP | 200 | 200 | 4 |
| TRSP | 200 | 200 | 5 |
| TRSP | 200 | 200 | 6 |
Star Plate 200x200x5 Features & Advantages
Offered with a dog ear feature for suspending service lines
Designed with rounded corners to minimize mesh damage during loading
The dome profile permits up to 18° of alignment when fitting the rock bolt with a domed ball washer
Various sizes available to meet specific customer needs
Enhanced bearing capacity due to the dome configuration

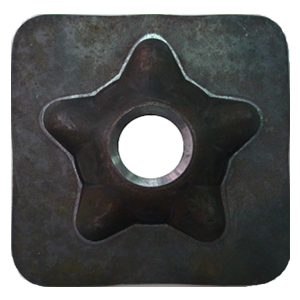

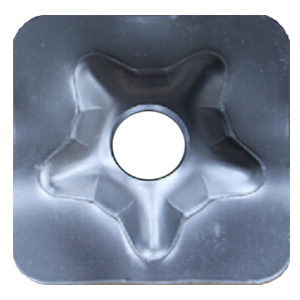

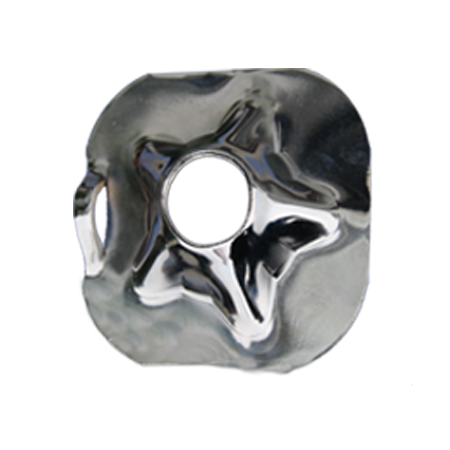

Choice of black or hot-dip galvanized finish
Star Plate 200x200x5 Package

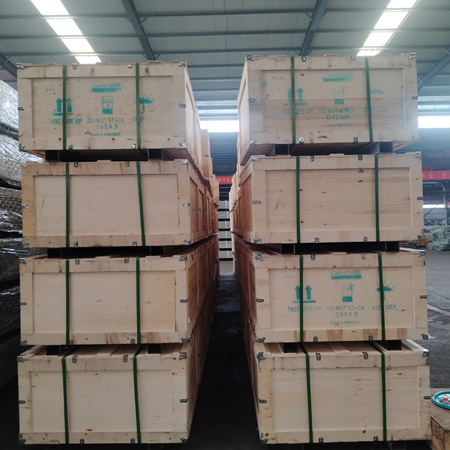

Star plates are packed with wire slips, plywood box, steel pallets & wrapping films.
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized products from different mining companies.
