Flat plate 300x300x10
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -Flat plate 300x300x10 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat plate 300x300x10 can be combined with cable bolts to provide support.

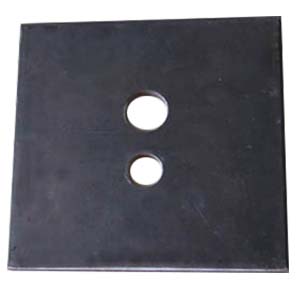

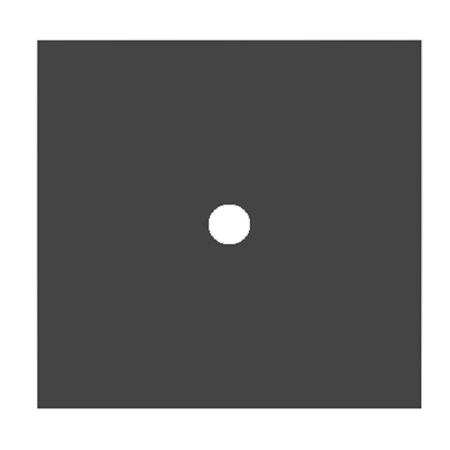

- -Flat plate 300x300x10 are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Flat plate 300X300X10
The flat plate is usually used in conjunction with cable bolt,it has a stable structure, is easy to install, has a unique design, excellent force-bearing effect and is easy to install.Flat plate is widely applied in mine roof support, various tunnel support, coal mine, metal mine and highway slope support, and the support effect is very good.
Flat plate 300X300X10 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Flat plate 300X300X10 Features&Advantages
Custom sizes can be provided to meet specific customer needs.
Suitable for mines with limited overhead space.
Appropriate for use on mostly flat rock surfaces.
Suitable for situations requiring minimal to no angular adjustment.
Multi-hole plates are offered to secure both breather tubes and grout tubes when used with cable bolts.
Offered with a choice of black or hot-dip galvanized finish.
Flat plate 300X300X10 Package
Flat plates are packed with plywood box, steel pallets & wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the cable bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
