Star Plate 150X150X6
- - TONRY specializes in creating an extensive selection of plates and combination plates compatible with a variety of rock bolts.
- - Star Plate 150X150X6 is engineered to evenly distribute the load from the roof bolt in all directions, effectively preventing loose strata from collapsing between rock bolts.
- -Star Plate 150X150X6 can resist warping under high pressure.
- -Star Plate 150X150X6 is made from hot-rolled steel extruded by star mold.
Star Plate 150X150X6
Star Plate as an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the anchor bolt. The function of the plate is to transfer the thrust generated by the locking moment of the nut to the top side, creating the initial anchoring force. At the same time, it transmits the pressure on the top side of the roadway to the anchor bolt, generating working resistance. Together, they reinforce the surrounding rock and prevent the displacement of the top side of the roadway.
Star Plate 150X150X6 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) |
| TRSP | 150 | 150 | 4 |
| TRSP | 150 | 150 | 5 |
| TRSP | 150 | 150 | 6 |
| TRSP | 200 | 200 | 4 |
| TRSP | 200 | 200 | 5 |
| TRSP | 200 | 200 | 6 |
Star Plate 150X150X6 Features & Advantages
Available with a dog ear feature for easy attachment of service lines.
Features rounded corners to minimize the risk of mesh damage during loading.
The dome-shaped profile permits up to 18° of alignment flexibility when installing rock bolts with a domed ball washer.
Custom sizes can be provided according to specific customer needs.
Enhanced load-bearing capacity due to the dome configuration.

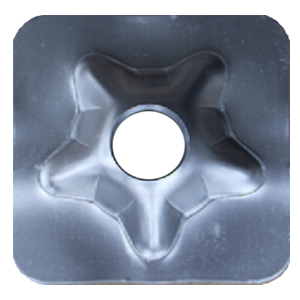

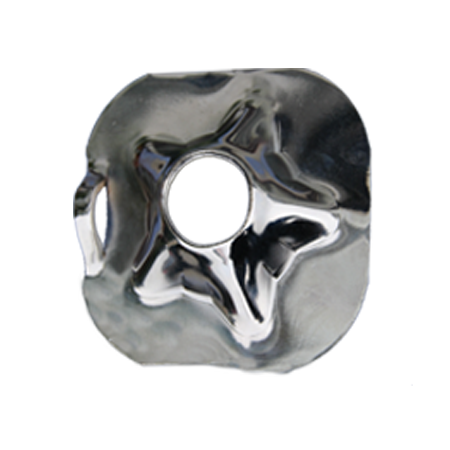

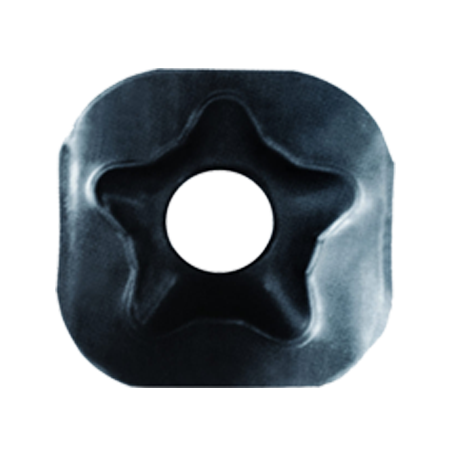

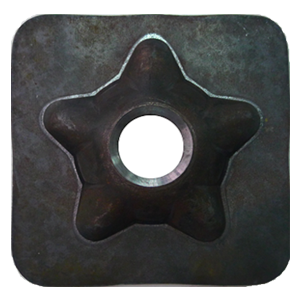

Options include a black finish or a hot-dip galvanized coating.
Star Plate 150X150X6 Package

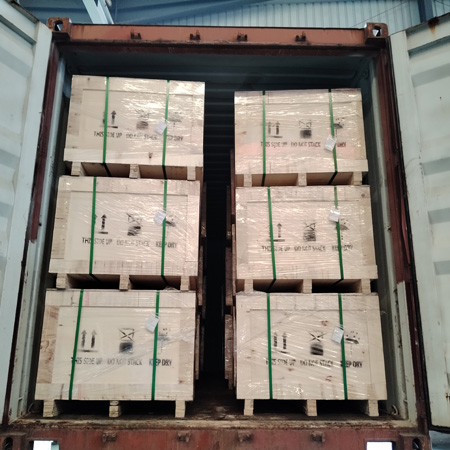

Star plates are packed with wire slips, plywood box, steel pallets & wrapping films.
