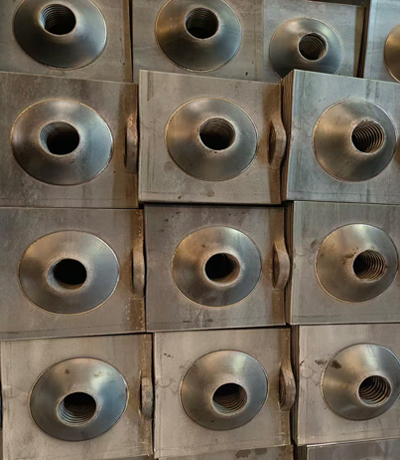

Mining Volcano Plate

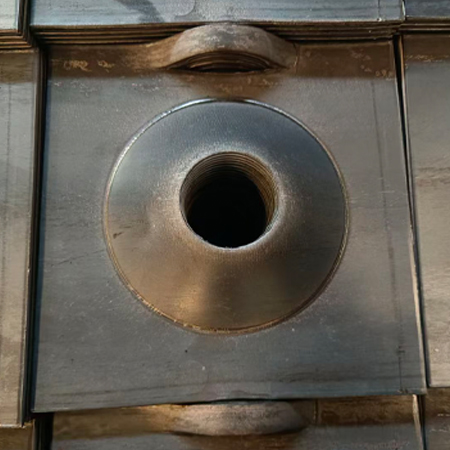

- -Dome configuration reinforces much more bearing capacity
- -Available in dog ear for hanging of service lines
- -The hole diameter of friction bolt plate is 2mm bigger than bolt
- -The hole diameter of thread bolt plate is about 4-5mm bigger than bolt,except used with dome ball
- -Available in black or hot dip galvanized
Mining Volcano Plate
Mining Volcano plate is widely used in mining engineering. The appropriate model and thickness should be selected according to the engineering requirements. Square pallets are more common. The specifications of anchor bolts and the installation environment, as well as the load-bearing capacity and stability of plates, are of vital importance to construction safety.
Mining Volcano Plate Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRDP | 120 | 120 | 4 | 0.45 | Y |
| TRDP | 125 | 125 | 4 | 0.49 | Y |
| TRDP | 150 | 150 | 4 | 0.71 | Y |
| TRDP | 150 | 150 | 5 | 0.88 | Y |
| TRDP | 150 | 150 | 6 | 1.06 | Y |
| TRDP | 150 | 150 | 8 | 1.42 | Y |
| TRDP | 150 | 150 | 12 | 2.12 | N |
| TRDP | 200 | 200 | 4 | 1.26 | Y |
| TRDP | 200 | 200 | 5 | 1.57 | Y |
| TRDP | 200 | 200 | 8 | 2.51 | N |
| TRDP | 200 | 200 | 10 | 3.14 | N |
| TRDP | 200 | 200 | 12 | 3.77 | N |
| TRDP | 200 | 200 | 14 | 4.40 | N |
| TRDP | 200 | 200 | 16 | 5.02 | N |
Mining Volcano Plate Package

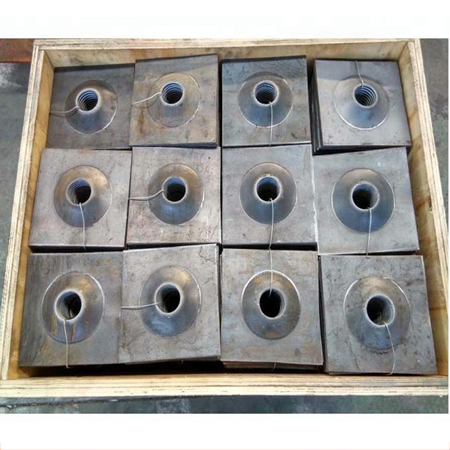

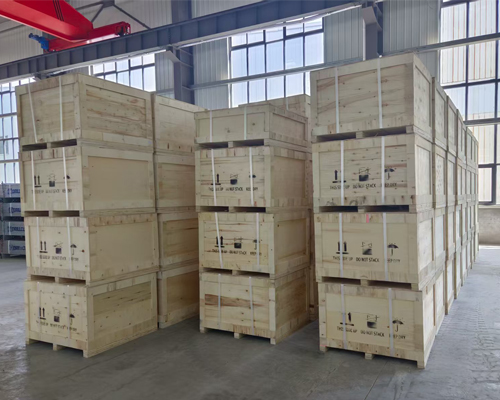

Domed plates are packed with wire slips, plywood box, steel pallets & wrapping films
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
