Flat plate 200x200x12

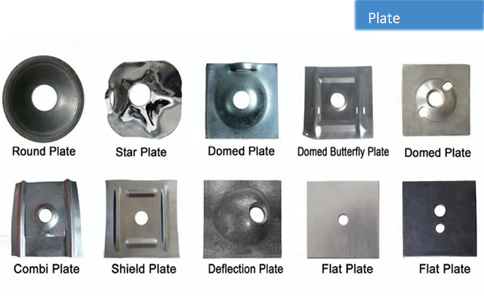

- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -TONRY plate helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat plates can be combined with cable bolts to provide support.
- -Flat plates are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Flat plate 200X200X12
Flat pallet 200X200X12 is mainly made of high-strength carbon steel plates, which are formed by shearing, punching and perforating.
It is used in conjunction with cable bolt,lightweight and easy to install, with good surface control effect. They are indispensable for mine tunnels, slopes and tunnel support.
Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Features & Advantages
Alternate sizes also available as customer’s requirement
Used in mine with low headroom
Used in relatively flat rock surface
Used in where little or no angularity needed
Muti-holes plate is available to fix the breather tube and grout tube used with cable bolts
Available in black or hot dip galvanized
Package

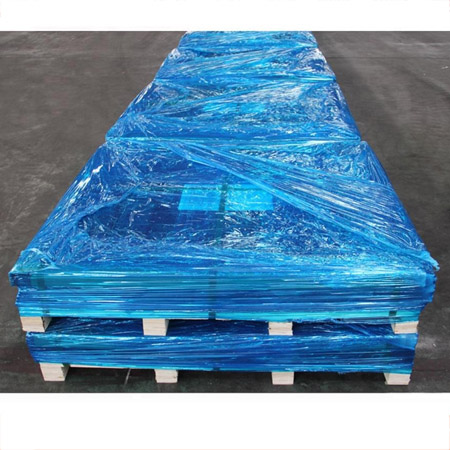

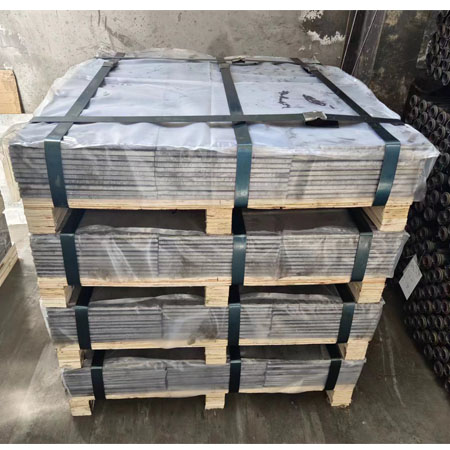

Flat plates are packed with plywood box, steel pallets & wrapping films.
As an important part of the anchor bolt support system, the performance of the plate directly affects the support effect of the cable bolt. Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies.
