Flat plate 200x200x8
- -TONRY designs and manufactures a wide range of plates and combination plates used with various rock bolts.
- -Flat plate 200x200x8 helps to distribute the roof bolt load evenly in all directions to prevent loose strata from falling between rock bolts.
- -Flat plate 200x200x8 can be combined with cable bolts to provide support.
- -Flat plate 200x200x8 are available in two different models: single-hole and double-hole, designed to accommodate single-cable bolts and double-cable bolts, respectively.
Flat plate 200x200x8
The flat plate has a stable structure, is easy to install, has a unique design, excellent force-bearing effect and is easy to install. It is widely applied in mine roof support, various tunnel support, coal mine, metal mine and highway slope support, etc., and the support effect is very good.
Flat plate 200x200x8 Specifications
| Plate Type | Length (mm) | Width (mm) | Thickness (mm) | Unit weight (kg) | Dog ear |
| TRFP | 150 | 150 | 12 | 2.12 | N |
| TRFP | 200 | 200 | 4 | 1.26 | N |
| TRFP | 200 | 200 | 8 | 2.51 | N |
| TRFP | 200 | 200 | 12 | 3.77 | N |
| TRFP | 200 | 200 | 14 | 4.40 | N |
| TRFP | 200 | 200 | 16 | 5.02 | N |
Flat plate 200x200x8 Features & Advantages
Custom sizes are available to meet specific requirements.
Optimal for mines with low overhead clearance.
The flat plate is suited for relatively flat rock surfaces.
Appropriate where minimal angular adjustment is needed.
Multi-hole plates are offered for securing breather/grout tubes with cable bolts.
Finish options: black or hot-dip galvanized for durability.
Flat plate 200x200x8 Package

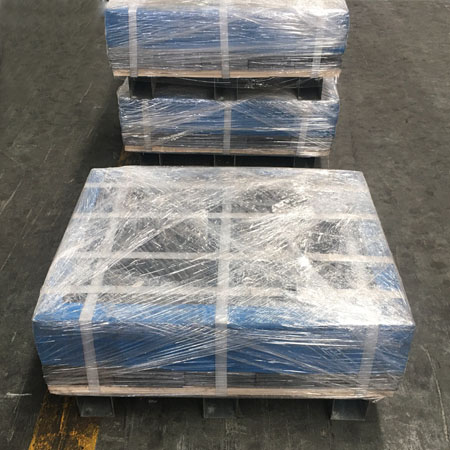

Flat plates are packed with plywood boxes, steel pallets & wrapping films.
Tonry with the manufacturer specialized in developing new support products,according to different requirements of a variety of customized plates from different mining companies
